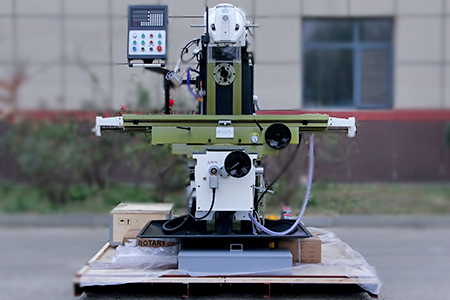

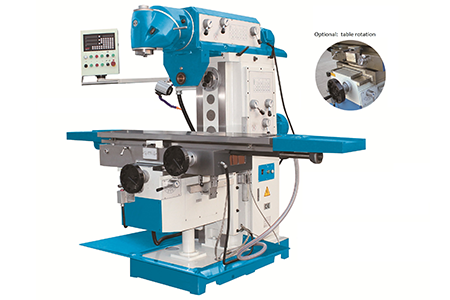

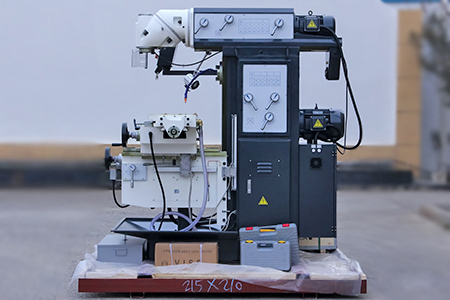

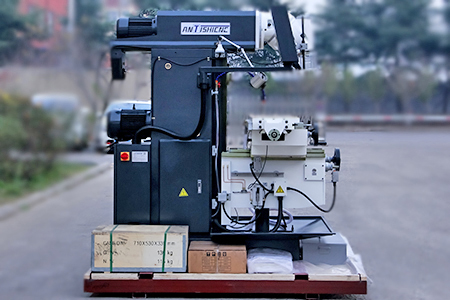

XL6436CLW Universal Swivel Head Milling Machine
Worktable size (L×W):1600x360mm
T slot (Width x No. x pitch):18x3x80mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | XL6436CLW |
| Working area | |
| Worktable size (L×W) | 1600x360mm |
| T slot (Width x No. x pitch) | 18x3x80mm |
| Max. load of table | 350kg |
| ±45°table rotation | Yes |
| Distance from horizontal spindle center to worktable surface | 0-450mm |
| Distance from spindle nose to table surface | 175-625mm |
| Travels | |
| Worktable longitudinal travel (X) | 1300mm |
| Worktable cross travel (Y) | 320mm |
| Worktable vertical travel (Z) | 450mm |
| Ram travel | 550mm |
| Spindle | |
| Horizontal spindle speed | 12 steps;
60-1800rpm |
| Spindle taper(Horizontal) | 7:24, ISO50 |
| Motor power(Horizontal) | 5.5kW |
| Universal milling head spindle speed | 12 steps;
60-1750rpm |
| Spindle taper(Universal milling head) | 7:24, ISO50 |
| Universal milling head swivel angel | ±360° |
| Motor power (Universal milling head) | 4kW |
| Feed | |
| Rapid feed (X/Y/Z) | 1200/800/600mm/min |
| Feed range (X) | 30-750mm/min |
| Feed range (Y) | 20-500mm/min |
| Feed range (Z) | 15-375mm/min |
| Servo motor torque | 15Nm |
| Others | |
| Machine size (L×W×H) | 2520x2100x2000mm |
| Net weight | 2800kg |
XL6436CLW Universal Swivel Head Milling Machine Product Introduction :
X6436 series Universal Swivel Head Milling machine a mature product mainly exported by ANTISHI company. The whole machine has a compact structure, beautiful and pleasant appearance. Its suitable for drilling , hole-expansion, reaming, bevel edge,and tapping, for surface milling, step plane ,slope ,and milling groove , for cutting and milling curve ,curve surface and cam.Have the function of step-less speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.The fuselage and main components are high strength cast iron, micro structure stability, ensure the stability of machine tool for long-term use.
Product Details
Universal vertical head can swivel 360°
Vertical & horizontal two spindles, for flexible operation
Spindles are driven by gearbox directly, for powerful milling
Coolant system, lubrication system, chip tray are included
Work table feed is driven by servo motor, good accuracy, low noise, and easy to operate.
One levercan select table feeddirections
Brief design of control panel, for easy operation (DRO is optional)
±45°(left & right) swivel table is hot sale (optional)
Standard Equipment:
Middle sleeve ISO50/MS4
Mill cutter holder ISO50–Ф32
Horizontal arbor assembly Ф27 & Ф32
8pcs milling chuck with collects ISO50
Draw bar
Lifting crank
Working lamp
Coolant system
Tool & tool box
Operator manual
Optional accessories:(need extra cost)
3-axis Digital Read Out
Dividing head 160mm (MANUAL)
Rotary table 250mm
Machine vise 6”
58 pcs Clamping kits
New design aluminum hang arm
±45° rotary worktable
Spindle protection cover
Worktable protection cover
LED work lamp
Automatic centralized oil lubrication
Schneider electric components
