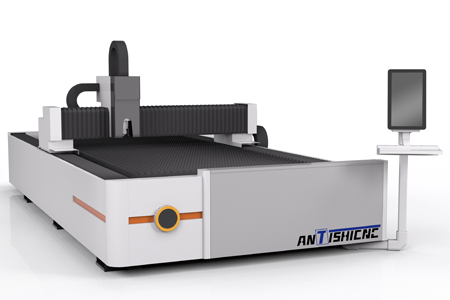

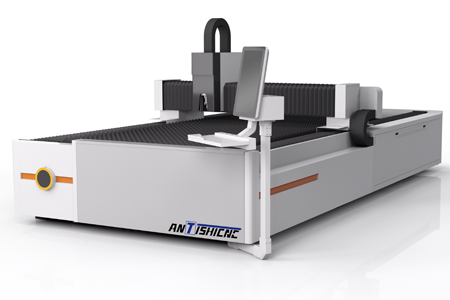

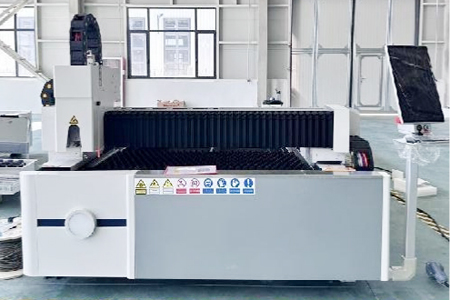

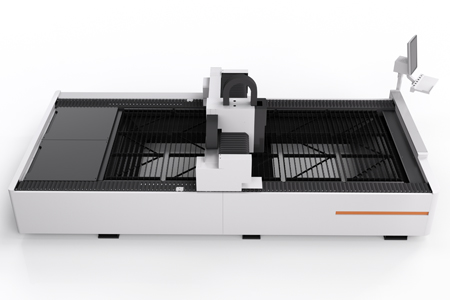

AT-3015 1.5kw to 6kw Plate Metal Sheet Laser Cutting Machine
Working area : 3000×1500mm
X/Y/Z Travel : 3000/1500/150mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Model | AT-3015 1500w |
Working Area | 3000mm×1500mm |
X/Y/Z Travel | 3000/1500/150mm |
Laser Wavelength | 1080nm |
Laser Power | Raycus 1500W~12000W CE |
Working Life of Fiber Source | More than 100000 hours |
Laser Beam quality | <0.373mrad |
Laser Cutting Head | Raytools Automatic Focus Laser |
Position Type | Red Dot Pointer |
Cutting Thickness | 0.5-12mm (for Large Quantity Process) |
Max. Idle Running Speed | 150M/min |
Geometric Position Accuracy | Within ±0.05mm/M |
Reorientation Accuracy | Within ±0.03mm/M |
Lubrication System | Electrical Motored |
Min. Line Width | ±0.02mm |
Power Consumption | ≤160KW |
Transmit system | Dual Rack & Pinion type |
Auxiliary Gas for Cutting/Assist system | Oxygen, Nitrogen, Air/Germany SMC |
Compatible Software | AutoCAD, CorelDraw, etc. |
Handle Control | WIFI Wireless Control Handle |
Graphic Format | DXF/PLT/AI |
Power Supply Voltage | 380V/3Ph/50Hz |
Warranty | 2 Years |
1. Cutting Process
Laser cutting is the best cutting method in all kinds of cutting technology mastered by people nowadays. Compared with traditional cutting, the advantages of laser cutting lie in:
– Contactless cutting, small thermal deformation;
– Linear cutting has high precision and fast speed;
– Showing a low-carbon, environmentally friendly way;
– Automatically cutting is easy to achieve, improving machining efficiency;
– Buying something costs 50% less than machining.
Fiber laser wavelength is 1.07-1.08μm, is 1/10 of the wavelength of CO2 laser, is more conducive to be absorbed by metal materials, cutting carbon steel, stainless steel and aluminum alloy speed is not only faster, but also can cut aluminum coated zinc plate, and pure aluminum, brass, copper and other high reflection non-ferrous metals; Optical fiber transmission, full flight optical path, especially suitable for cutting all kinds of complex parts; Powerful NUMERICAL control system and nesting software to solve many technological problems, further improve the cutting accuracy, perforation speed, simple and convenient operation. The laser is directly transmitted to the cutting head of the machine by the laser through the optical fiber. The mechanical structure is simple, the optical path is constant, the basic maintenance is free, and the cutting performance is stable. The fiber laser uses the rare element Ytterbium as the luminescent material, without high purity helium, nitrogen, carbon dioxide and their consumption. Electricity to light conversion rate up to 30%, more low-carbon, economic.
2. Advantages of fiber laser cutting
1) Cutting head, with the use of capacitive induction control, so that the nozzle in the cutting process is always consistent with the workpiece surface distance, so it can not only complete the plane cutting, but also can complete all kinds of uneven surface cutting;
2) Cutting quality is good: no contact cutting, cutting edge affected by heat is very small, basically no workpiece thermal deformation, can avoid the collapse of the edge formed when the material punching shear, slit generally do not need secondary processing;
3) Save mold investment: can complete a variety of complex structure processing, only need to draw any image on the computer can be laser processing, no mold, no mold consumption, no need to repair the mold, save the time to replace the mold, so as to save the processing costs, reduce the cost of production, especially suitable for the processing of large products;
4) Material saving: the use of computer programming, can be different shapes of products for cutting, maximize the utilization of materials.
3. Machine Feature:
1)High cutting precision: the laser beam has high cutting precision and can meet most of the cutting needs.
2)Fast cutting speed: the laser beam cutting speed is fast, high degree of numerical control, can meet the needs of mass production.
3)Simple operation: the operation of the laser cutting machine is simple and can be operated through the numerical control system.
4)wide range of processing: laser cutting machine processing range, can cut a variety of materials.
Summary: Laser plate cutting machine is a kind of efficient and accurate cutting equipment, can meet the cutting needs of a variety of materials. In modern industrial production, laser plate cutter has become one of the essential equipment, its high precision, high efficiency, low noise and other characteristics also provides a more convenient solution for industrial production.
4. Cutting Performance
Machine Configuration
Model | AT-3015 1500w |
Control System | FSCUT2000E Control System |
Drives and Motors | FUJI Drive and Motor |
Fiber Laser Source | Raycus(CE) Laser Source Global Edtion 1500W |
Fiber Laser Head | Raytools Automatic Laser Cutting Head |
Electric Proportional Valve | SMC proportional valve |
Guide Rails | Taiwan HIWIN Rails |
Rack and Gear | Taiwan YYC Rack and Gear |
Lubrication | Automatically Lubrication System |
Reducer | Motovario |
Electron Component | France Schneider |
Chiller | S&A CWFL-3000 |
Voltage | 380V 3Ph 50Hz |
Machine Parts Detail
Name | Picture | Description |
Laser source | Raycus laser source | |
Laser head | Raytools
High dust resistance: Dustproof grade IP65, fully enclosed optical path, lens pollution possibility is almost zero. GIF zero focus: Adjustable scale, so that the zero focus position is unified, no longer to adjust the process parameters trouble. High efficiency water cooling: Focusing mirror, collimator, nozzle are built in cooling function, strong solution to cutting heat problem. |
|
Control system | FSCUT control system
FSCUT operating system, advanced technology, suitable for kinds of material cutting. Supports AI/PLT/DXF/Standard G-code. Supports features like Lead-in/out, cutting compensation, micro-joint, bridging, gap cutting etc., Multiple Piercing / Laser Power / Frequency / Gas type / Gas pressure / Focus height adjustment can be set during cutting and piercing. WIFI remote control (Hand Device). |
|
Water chiller | S&A Brand
Chinese famous brand,water chiller has many advantages such as precision and efficiency, intelligence and convenience, stable use safety performance, energy saving, environmental protection and energy saving. |
|
Servo motor | FUJI servo motor
The FUJI Servo Motors and Drives with fast dynamic response provides speed and performance stability. The maximum idle speed of the machine can reach up to 120 m/min with the acceleration of 1.5 G. |
|
Reducer | France Motoreducer reducer
Perfect combination of servo system with the Motoreducer planetary gearbox and Helical Rack & pinion improves the position and re-positi |
|
Proportional valve | Japan SMC Proportional valve
for controlling oxygen flow |
|
Guide and Gear | Taiwan HIWIN Guide and Gear
High positioning accuracy, low wear and tear, can maintain accuracy for a long time, suitable for high-speed movement and greatly reduce the driving horsepower required for the machine, can withstand loads in the up, down, left and right directions at the same time, easy to assemble and interchangeable, and simple lubrication structure. |
|
Rack | Taiwan famous brand (YYC)
High precision, long life, can provide rigorous support for quenching helical gears and grinding helical gears, so that the load drive structure is compact, can effectively reduce the driving torque. |
|
Electric components | Schneider electric components
Circuit protection against short-circuit or overload currents. |
|
Lubrication system | Automatic Lubrication system
Keep the guide rail and rack lubricating during machine running for X-axis, Y-axis and Z-axis. |
