Power supply	AC220
Laser type	Hermetic CO2 glass tube 260W
Worktable	Alumium knife worktable and honeycomb
Cutting thickness	Plywood 21mm .acrylic 12mm tetolite and glass fiber sheet 10mm ,carton fiber 12mm .stainless steel 3mm .carbon steel 3mm
Applicable Materials	Acrylic, bamboo,wood,MDF, plywood, leather,rubber,plastic,paper, cloth, stone, steel etc..
Max moving speed	25m/min
Laser energy control	1-100% set by hand or software
Min shaping character	Character 33 mm, letter 22 mm
Operating temperature	0°C-45°C
Data transfer interface	USB /Udisk/internet
System environment	WINDOWS 2000/ XP/Vista/Win7/Win8/WIN10
Cooling way	Water cooling and protection system
Graphic format supported	NMP JGP PNG DXF .The file which CorelDraw、AutoCad、CaDian,Illustrator and laserwork can identify
Memory	256 MB
Color Separation	Separation of cutting up to 256 colors
Package Inclusion	machine, focus ruler, Software CD, user manual book, Air pump/pipe, Power cables, USB cables, water pump/pipe,exhaust fan/pipe, silicone glue, Tools bag
Dimensions	340018601100mm
Dimensions(package)	380022901545mm
Net /Gross Weight	900kg/1000kg

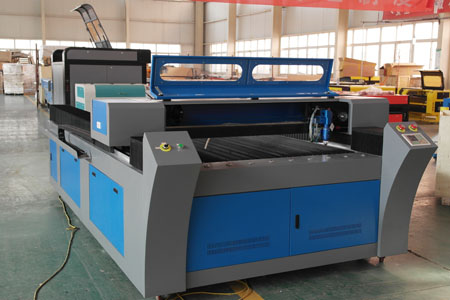

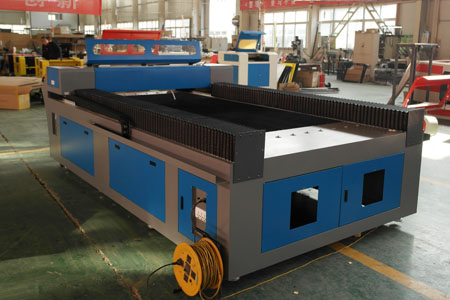

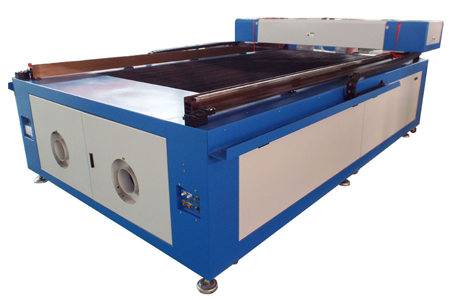

CO2 laser cutting machine for metal plastic wood stone acrylic bamboo and rubber materials

Main Parts & Standard Equipment
Main Configuration
Ruida 6332 with Laserwork software
Effective Working Area：2500x1300mm
Laser power: 260W Sealed laser tube 10.6um
FIXED worktabel, red dot pointer,air assist ,and auto focus laser head.
Imported PMI guide rail, belt ,transmission+Chinese top brand leadshine step motor and driving system. imported lens, CW6000 water chiller
