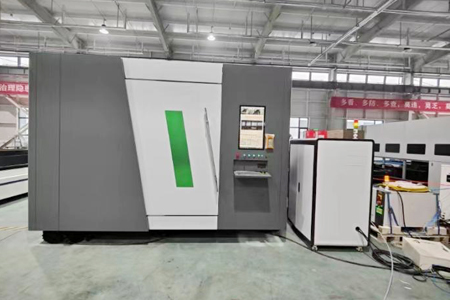

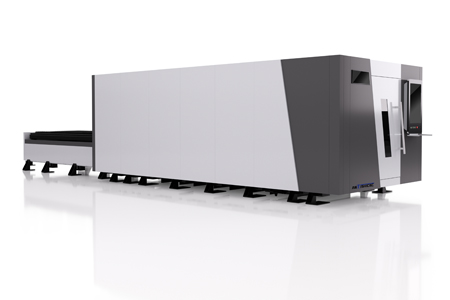

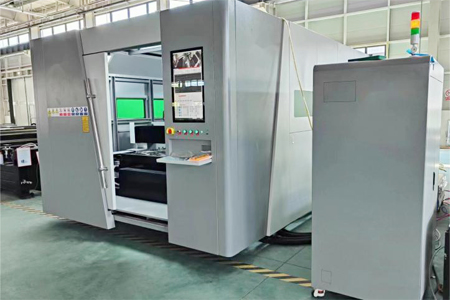

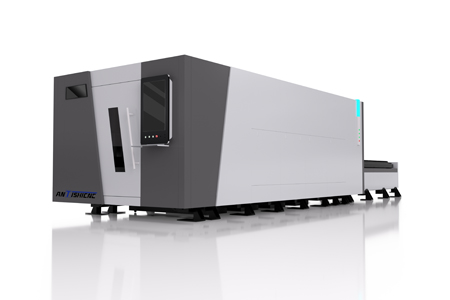

AT-6020HF Full Cover 12kw Fiber Laser Cutting Machine
X/Y/Z Stroke : 6000/2000/200mm
Working Area : 6000mm×2000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | AT-6020HF |
| Working Area | 6000mm×2000mm(Exchanged table) |
| Laser Wavelength | 1080nm |
| Laser Power | 12000W |
| Working Life of Fiber Source | More than 100000 hours |
| Laser Beam quality | <0.373mrad |
| Laser Cutting Head | Raytools Automatic Focus Laser |
| Position Type | Red Dot Pointer |
| Cutting Thickness | 0.5-40mm for Large Quantity Process |
| Max. Idle Running Speed | 150M/min |
| X/Y/Z Stroke | 6000/2000/200mm |
| Geometric Position Accuracy | Within ±0.05mm/M |
| Reorientation Accuracy | Within ±0.03mm/M |
| Lubrication System | Electrical Motored |
| Min. Line Width | ±0.02mm |
| Transmit system | Dual Rack & Pinion type |
| Auxiliary Gas for Cutting/Assist sys | Oxygen, Nitrogen, Air/Germany SMC |
| Compatible Software | AutoCAD, CorelDraw, etc. |
| Handle Control | WIFI Wireless Control Handle |
| Graphic Format | DXF/PLT/AI |
Resources & Downloads:
AT-6020HF Full Cover 12kw Fiber Laser Cutting Machine Product Introduction :
Product description
AT-6020HF Fiber Laser Enclosed Cutting Machine with high safety protective cover structure, large format, thick plate stable processing.Fully enclosed safety design, stable and large cutting under high power and high-speed operation, giving the equipment a higher standard product positioning.
Original technology, smokeless cutting. Time – sharing, partition, subsection dust pumping heat, more environmental protection.
Machine Parts Detail
| Control System | FSCUT 8000C Control System |
| Drives and Motors | Japan Fuji Drive and Motor
2.9KW*2 1.3KW*1 750W*1 |
| Fiber Laser Source | Raycus Laser Source Global Edtion 12000W |
| Fiber Laser Head | FSCUT Boci BLT642 Laser Cutting Head |
| Electric Proportional Valve | Japan Lanny Electric Proportional Valve |
| Guide Rails | Taiwan HIWIN Rails |
| Rack and Gear | Taiwan Rack and Gear |
| Lubrication | Automatically Lubrication System |
| Reducer | Italy Motovario |
| Electron Component | France Schneider |
| Chiller | S&A CWFL-12000 |
| Voltage | 380V 3Ph 50Hz |
| AC | With AC |
