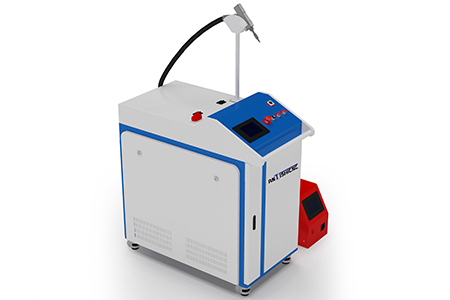

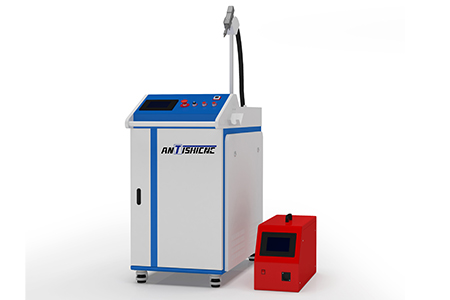

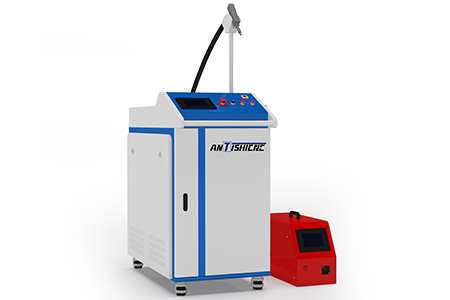

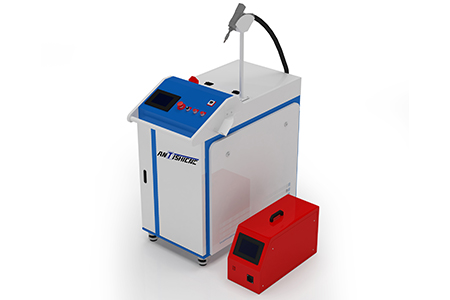

AT Series Laser Welding Machine
Rated output power:1500W-3000W
Welding thickness: 0.3mm-7mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| MODEL | AT-1500W | AT-2000W | AT-3000W |
| Rated output power | 1500W | 2000W | 3000W |
| Output fiber length | 10M | ||
| Welding thickness | 0.3mm-4mm | 0.3mm-5.5mm | 0.3mm-7mm |
| Voltage | 220V±10V | 220V±10V | 220V±10V |
| Indicator light | Red light | ||
| Cooling method | Water cooling | ||
| Max pressure | 10 bar | ||
| Total Power | 7KW | 9KW | 11KW |
| Working model | Continuous/modulation | ||
| Working environment | Flat,no vibration and shock | ||
| Working humidity | <70 | ||
| Operating temperature | -10-45℃ | ||
Quality assurance
Best-Selling Products
Passed CE/FDA/ETL,Meeting European and American Standards
Support customization
High degree of automation, simple welding process.
The non-contact operation method can meet the requirements of clean and environmental
Improve work efficiency, the finished work-pieceappearance is beautiful, the weld is small, the welding depth is large, the welding quality is high.
Standard Configuration
| Control System | Raytools |
| Laser source | Raycus 1.5KW-3KW laser source global edtion |
| Fiber Laser Welding Head | Raytools/Sup laser welding head 3in1 |
| Chiller | S&A water chiller |
| Voltage | 220V 1Ph 50Hz/380v 3Ph 50Hz |
| Automatic wire feeding | Raytools/Sup automatic wire feeding |
| Operate screen | Touched operate screen |
| Safe device | Emergency stop switch |
| Packing | Ozon wooden case package |
Attached Accessories
| Name | QTY |
| Wrench | 1 pcs |
| barometer | 1 pcs |
| Gloves | 1 pcs |
| Protective lenses | 10 pcs |
| protection goggle | 1 pcs |
| Product Manual | 1 set |
| Certificate | 1 set |
| Laser report sheet | 1 set |
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
