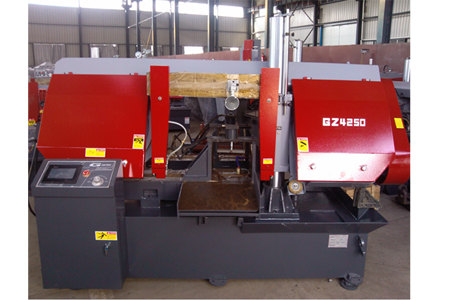

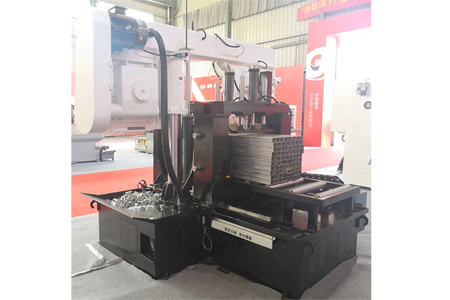

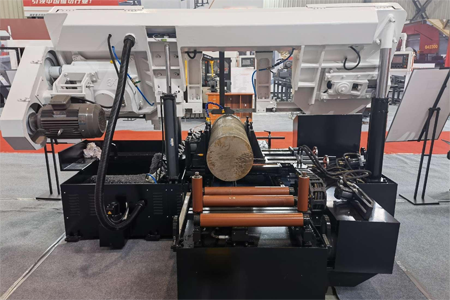

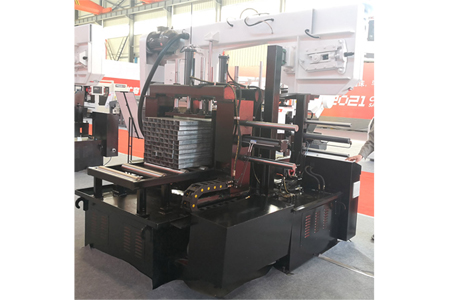

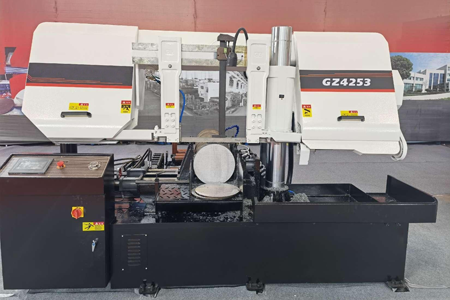

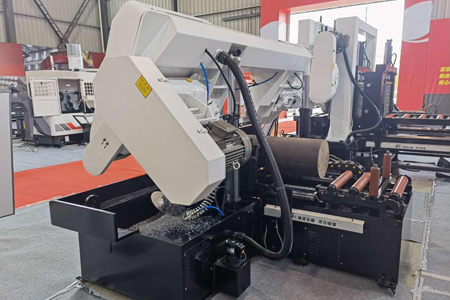

Fully Automatic PLC Control Horizontal Straight Cutting Bandsaws GZ4253

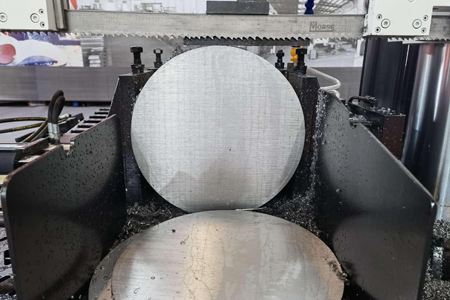

Round material: Ø530 mm
Square material: 530 x 530 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | GZ4253 | |
| Max.Cutting | Round | 530mm |
| Capacity | Quadrate | 530×530mm |
| Saw Blade | Speed | 22/35/55/80 m/min |
| Size | 41×1.3×6000mm | |
| Guides | Carbide and bearing blade guides | |
| Cleaning | Wire brush & flood coolant | |
| Tension | Manual | |
| Motor Output | Blade | 5.5kw |
| Hydraulic | 1.5kw | |
| Coolant | 135w | |
| Single Feeding Stroke | 500mm | |
| Work Vice | Hydraulic | |
| Height of Woke Table | 640mm | |
| Machine Size | 3150×2150×1850mm | |
Product Details
The ANTISHI company GZ Series PLC control fully automatic metal cutting bandsaw machine is a robust, modern-to-use workshop saw for precise sawing of medium diameters. All operating switches are clearly grouped on a touchscreen and control panel. The machine aims to the fully-automatic control as it’s main feature. Using PLC touch screen panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the work-piece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.
GZ series band saws, which are designed for straight cuts in larger work-pieces made of steel, cast iron and other metals. The rigid dual column frame is extremely stable and the main drive is via low-maintenance V-belts. The work-piece clamping and the stroke of the saw frame are driven hydraulically.
Features
Rigid dual column frame with column guide for superior stability
Control panel with touchscreen
Hydraulic vise work-piece clamping
Automatic saw blade overload control
Support table with integrated feed rollers
Material feed system with work-piece guide rollers
Fast approaching bar detection of the work-piece height
Main Parts for the saw machine
| NO. | Part Description | Brand/Origin |
| 1 | Main motor | DEDONG |
| 2 | Oil pump motor | SANYOU |
| 3 | Oil pump (variable pump) | ANTISHI |
| 4 | The electromagnetic valve | ANTISHI |
| 5 | Breaker | SIEMENS |
| 6 | AC contactor | SIEMENS |
| 7 | Thermal relay | SIEMENS |
| 8 | Small relay | Schneider |
| 9 | Transformer | TIANZHENG |
| 10 | Worm gear box | ANTISHI |
| 11 | PLC | DELTA |
| 12 | Touch screen | DELTA |
| 13 | Inverter | DELTA |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
Standard Equipment of the saw machine
Blade cleaning brush.
Working light
Saw frame height selector gauge
Out feed with auxiliary plate table
One piece of bi-metal saw blade.
One set of tools with tool box
Roller table 1M long
PLC and touching screen control
Optional Parts and Optional Equipment
| NO. | Spare parts Description | Specification |
| 1 | Detachable rack | 2 meter |
| 2 | Band saw blade | 41×1.3×6000mm |
| 3 | Pressure reducing valve | Clamping force regulation at Hydraulic station |
| 4 | Inverter | / |
| 5 | Saw Belt Hydraulic Tensioning | / |
| 6 | Spiral Chip Conveyor | / |
