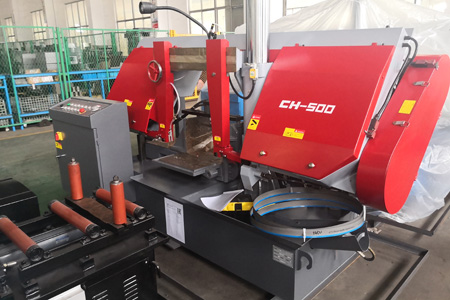

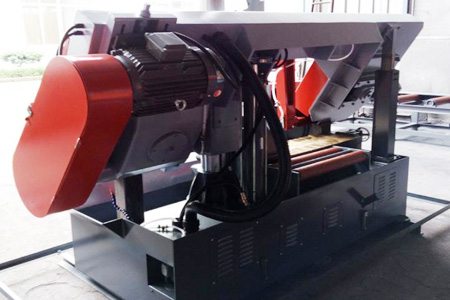

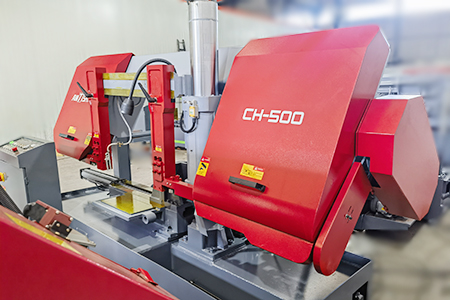

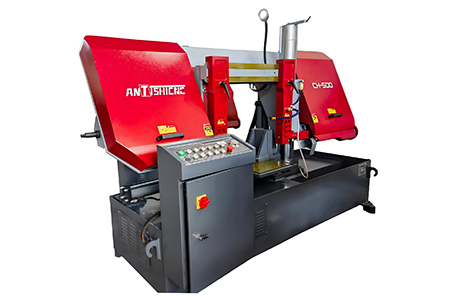

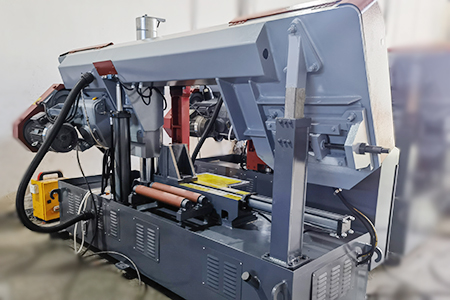

Semi-automatic Control Horizontal Straight Cutting Bandsaw G4250(CH-500)
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | G4250(CH-500) |
| Cutting capacity 0° (flat) (length x width) | 500*500 mm |
| Cutting capacity 0° (round) | 500 mm |
| Cutting capacity 0° (square) | 500 *500 mm |
| Cutting speed infinitely variable | 18/30/50/70 m/min |
| Stop length(single stroke) | N/A |
| Accuracy of the feeding(single feeding) | ±0.2 mm |
| Saw blade size | 41×1.3×5080 mm |
| Saw blade tension type | Manual |
| Workbench height | 605 mm |
| Motor rating main drive | 4 kw |
| Motor rating of hydraulic feed | 0.75 kw |
| Overall dimensions (length x width x height) | 2700x1250x1850 mm |
| Weight(NET WEIGHT) | 2000 kg |
Product Details
The CH series metal bandsaws are semi-automatic horizontal dual column structure cutting saws for high-precision straight cuts in large work pieces made of steel, cast-iron,non-ferrous metals and etc. These machines are designed with a rigid, highly stable dual-column frame. The saw frame’s stroke cylinder is integrated in the frame. The machine tool has reasonable structure, stable and reliable performance and high precision. It is an ideal equipment for medium and small batch cutting due to it’s economic price and high quality.
Features
● Double column structure
● Hydraulic control of sawing feed speed, infinitely adjustable;
● The work-piece is clamped by hydraulic vise;
● The band saw blade adopts rolling bearing and hard alloy guide to prolong the life of the saw blade;
●At the end of the cutting cycle, the machine automatically shuts off and the saw blade returns to its adjustable home position.
● The guide seat structure is reasonable & high precision, ensures the correct guidance of the guide block, prolong the saw blade life.
● Automatic and hydraulic tension saw blades can be customized according to requirements;
● Optional cutting speed frequency conversion control.
● Electric feeder (optional).
Standard Equipment
1. Blade cleaning brush.
2. Working light
3. Saw frame height selector gauge
4. Out feed with auxiliary plate table
5. One piece of bi-metal saw blade.
6. One set of tools with tool box
7. Roller table 1.5M long
8. Hydraulic part clamping
9. Support with roller
10. Coolant system
11. Operating tools
12. Operator manual
Optional Equipment
| NO | Spare parts Description | Specification | Function |
| 1 | detachable feeding rack | 2 meter | Take the load of materials |
| 2 | Inverter | G4250(CH-500) | |
| 3 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 4 | Spiral Chip Conveyor | G4250(CH-500) | Remove the cutting chips |
| 5 | Saw Belt Hydraulic Tensioning | G4250(CH-500) | Tension the saw blade hydraulically |
| 6 | Laser projector | G4250(CH-500) | |
| 7 | Press-up device | G4250(CH-500) | (installed on a vice) |
