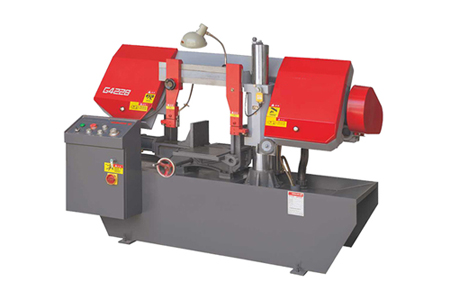

Horizontal metal band sawing machine (G4228)
Round material: Ø280 mm
Square : 400w x 280h mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Sawing Capacity(mm) | Round material: Ø280 mm Square material: 400w x 280h mm |
Band saw wire speed(m/min) | 25 / 35 / 45 / 60 |
| Band saw wire specifications(mm) | 27 x 0.9 x 3620 | Main motor power(kw) | 3（4p） |
| Hydraulic motor(kw) | 0.75 | Cooling pump(kw) | 0.06 |
| Work clamping method | Hydraulic vice | Saw blade tensioning method | Manual |
| Main drive structure | Worm gear drive | Feeding mode | Auxiliary mixing |
| Height of table(mm) | 1850 x 1000 x1580 | Overall size(mm) | 1850 x 1000 x1580 |
* The series of machine tools are semi-automatic and automatic, automatic machine tool adopts PLC control, touch screen can preset 5 sets of sawing process parameters.
* A saw cutting device can be configured according to requirements.
Product description:
● Hydraulic control saw cutting feed speed, stepless adjustable;
● The workpiece is clamped by hydraulic clamping;
● Belt saw blade adopts rolling bearing and carbide alloy guide to prolong the service life of saw blade;
● Electric feeding rack (optional).
