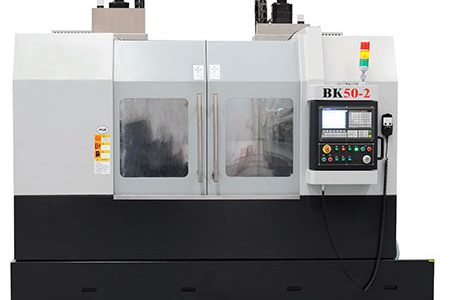

BK50-2 vertical CNC lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
|
Item |
Unit |
Specification |
|
|
Capacity |
Max. swing |
mm |
Φ500 |
|
Max. turning dia. |
mm |
Φ420 |
|
|
Max. swing over slide |
mm |
Φ500 |
|
|
Max. turning height |
mm |
360 |
|
|
Spindle |
Hyd. chuck dia. |
mm |
Solid 15″ |
|
Spindle nose |
|
A2-8 |
|
|
Spindle speed |
r/min |
50-800 |
|
|
Power of spindle |
kW |
11 |
|
|
Max. spindle torque |
Nm |
420 |
|
|
Carriage |
Travel (X/Z) |
mm |
300/380 |
|
Rapid traverse (X/Z) |
m/min |
12/12 |
|
|
Servo motor torque (X/Z) |
Nm |
15/22 |
|
|
Servo motor power (X/Z) |
kW |
2.3/3.5 |
|
|
Turret |
Number of stations |
|
4-station |
|
Tool section |
mm |
32×32 |
|
|
Others |
Power source |
kVA |
45 |
|
Dimension(L×W×H) |
mm |
4076×2064×2567 |
|
|
Weight |
kg |
10000 |
|
Introduction
BK50-2 vertical CNC lathe with dualspindles, GSK 980T control, specially designed for flange industry. Dualspindles and dual turrets can be controlled separately through dual channelsfor rough and semi-finish machining different flanges, housing parts which areover 10kg weight especially those flanges, plates, collars, short shafts partswhich are not easy for clamping.
Features:
1. dual spindles, dual channels,simultaneous machining for different parts.
2. big slope in machine base for smoothchip removal.
3. high accuracy and loading capacity X/Zlinear guideways.
4. full splash guard.
