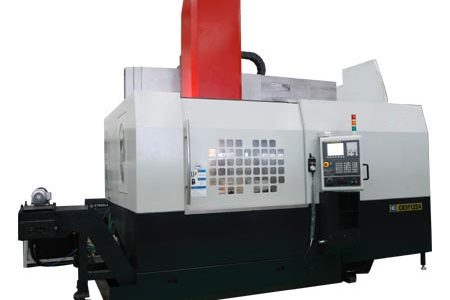

CK51125A vertical CNC lathe
Max. swing dia. : Φ1500(59.055)
Max. turning dia. : Φ1250(49.212) mm(in)
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Description | Unit | Data | |
| Capacity | Dia. of table | mm(in) | Φ1000(39.370) |
| Max. swing dia. | mm(in) | Φ1500(59.055) | |
| Max. turning dia. | mm(in) | Φ1250(49.212) | |
| Max. turning length | mm(in) | 600(23.62) | |
| Max. work weight | Kg(ibs) | 3500(7718) | |
| Table | Rotation speed of table | r/min(rpm) | 2-400 |
| Max. torque of table | N.M(ft-bl) | 9500(7005.89) | |
| Power of main motor (cont./30min) | kW(hp) | 30(40.8)/37(50.32) | |
| Feed | Travel X | mm(in) | 1300(58.181) |
| Travel of slide sleeper (Z) | mm(in) | 600(23.62) | |
| Rapid traverse X/Z | mm/min(ipm) | 10(393.7)/10(393.7) | |
| Torque of servo motor X/Z | Nm(ft-bl) | 30(22.12)/22(16.22) | |
| Power of servo motor X/Z | kW(hp) | 7.0(9.52)/4.0(5.44) | |
| Dia. of ball screw X/Z | mm | Φ63 /Φ50 | |
| Turret | Number of stations | 12 | |
| Tools size (turning/boring) | mm(in) | 32X32(25X25,Φ50) | |
| Others | Power source | kVA | 75 |
| Dimension (L×W×H) | mm(in) | 4950(194.9)X3020(118.9)X4200(165.4) | |
| Total weight | Kg(ibs) | 18500(40,793) | |
Introduction
1.high efficient vertical CNC lathe for big and middle size workpieces.
2.high strength casting machine base and column, well stability andshock-absorbing.
3.fixed-beam structure for high rigidity.
4.vertical structure, easy clamping, small working space.
5.spindle with powerful AC motor, with 2-step ZF speed reducer which can outputhigh torque and high speed running for different machining requirements.
6.with rigid and fast tool change 12-station turret.
7.6-jaw hydraulic chuck ensures the reliable clamping.
8.easy cleaning separated coolant tank.
