Technical Parameter :
Main technical parameters of BC6066 head planer
|Maximum planing length||660mm|
|Maximum horizontal stroke of worktable||630mm|
|The maximum distance from the bottom of the ram to the worktable||385mm|
|Maximum vertical stroke of worktable||360mm|
|The distance between the work surface and the bottom surface of the ram||6.5-370mm|
|Work table size (length×width)||630*400mm|
|Maximum vertical stroke of tool post||120mm|
|Maximum turning angle of tool post||±60°|
|Range of ram reciprocating times per minute||14、20、28、40、56、80times/min|
|Number of ram to shift speed||6|
|Table feed range, horizontal feed||0.2~2.5mm、12level|
|Maximum size of planer handle (width×thickness)||20×30mm|
|Width of groove under working table||18 mm|

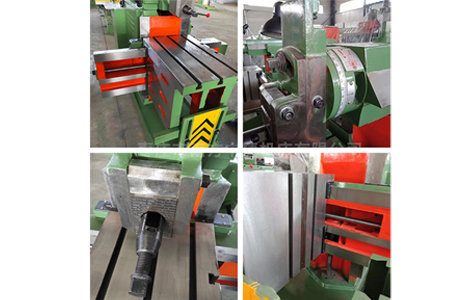

The ram carries the planing knife for horizontal and linear movement. The tool holder can rotate at an angle in the vertical plane and can be manually fed. The worktable carries the workpiece for intermittent horizontal or vertical feed movement for processing planes and grooves. Grooves and dovetail surfaces can also be used to machine shaped surfaces, such as turbine blades. The ram and sliding seat can also move on the bed (horizontal type) or column (vertical type), which is suitable for planing the local plane of super large workpieces. Use the knives of the reversal movement to cut the workpieces that have been fixed on the working platform of the machine tool.
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
