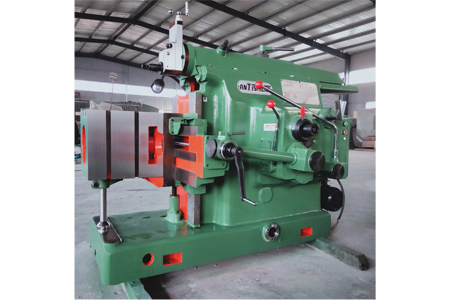

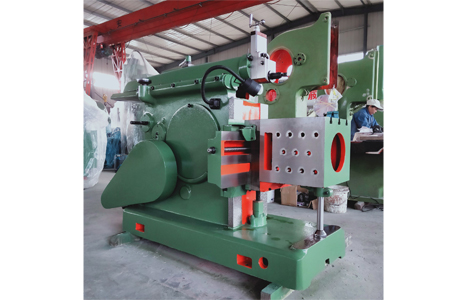

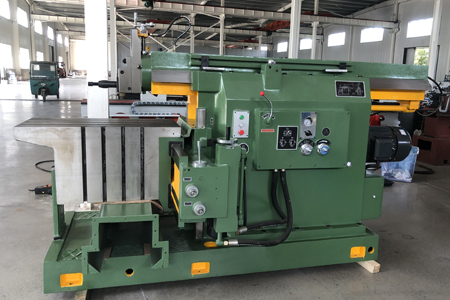

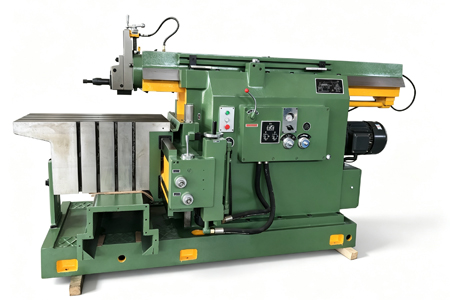

BullHead Shaper Machine BC6050

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Product Description:

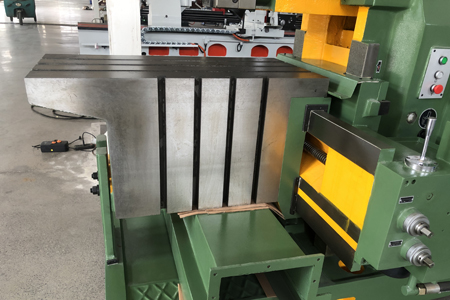

The ram carries the planing knife for horizontal and linear movement. The tool holder can rotate at an angle in the vertical plane and can be manually fed. The worktable carries the workpiece for intermittent horizontal or vertical feed movement for processing planes and grooves. Grooves and dovetail surfaces can also be used to machine shaped surfaces, such as turbine blades. The ram and sliding seat can also move on the bed (horizontal type) or column (vertical type), which is suitable for planing the local plane of super large workpieces. Use the knives of the reversal movement to cut the workpieces that have been fixed on the working platform of the machine tool.

Product Features:
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.

SPECIFICATIONS AND PARAMETERS BC6050
MAX.SHAPING LENGTH 500mm
MAX. DISTANCE FROM LOWER EDGE OF RAM TO TABLE 370mm
MAX. TRAVEL OF TABLE HORIZONTAL 500mm
 MAX. TRAVEL OF TABLE VERTICAL 300mm
MAX. SWIVEL ANGLE OF TABLE WITHOUT VICE  ±90°
MAX. SWIVEL ANGLE OF TABLE WITH VICE ±55°
MAX. VERTICAL TRAVEL OF TOOL HEAD 110mm
FREQUENCY OF RAM STROKE 15,24,37,51,64,80,
102,126,158 times/min
PAWL RIDING OVER 1 RATCHET TOOTH VERTICAL 0.0845mm
PAWL RIDING OVER 1 RATCHET TOOTH HORIZONTAL 0.133mm
PAWL RIDING OVER 10 RATCHET TOOTH VERTICAL 0.845mm
PAWL RIDING OVER 10 RATCHET TOOTH HORIZONTAL 1.33mm
MOTOR POWER 3kW1420 r/min
VICE MEASUREMENTS 240×64×215mm
SIZES ( L x W x H ) 1943×1160×1533mm
WEIGHT 1800kg
