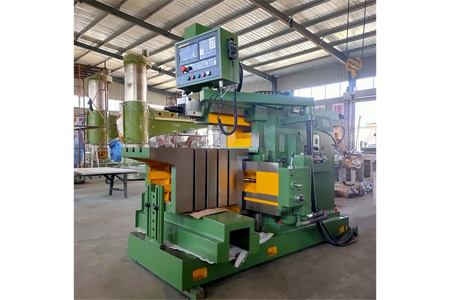

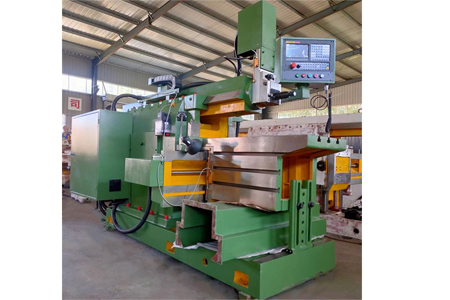

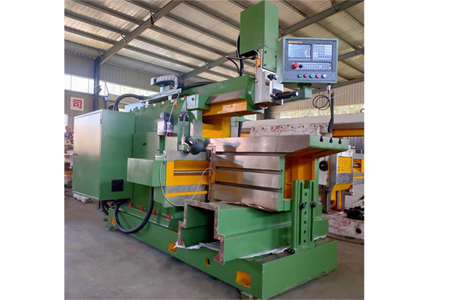

BullHead Shaping Machine BK60100

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email :
(your request will be responsed within 1 hour.)

Technical Parameter :

Model BK60100
Maximum planing length 1000mm
Ram working stroke speed (infinite) 3-38m/min
Maximum distance from the bottom of the ram to the work surface 400mm
Maximum cutting force 28kN
Maximum stroke of tool post (CNC servo) 160mm
Size of working surface on worktable (length×width) 1000×500mm
T-slot width of working surface of working table 22mm
Maximum horizontal stroke of worktable 1200mm
The horizontal feed range of the table for each reciprocating stroke of the ram (stepless) CNC servo stepless control
Maximum load capacity of worktable 600kg
Fast moving motor for main motor worktable 7.5kw
Dimensions (length×width×height) 0.75kw
Net weight (approximately) 4340*2150*2050
Surface roughness 4980kg
Maximum planing length 3.2
Remarks: Due to product improvement and other reasons, specifications are subject to change without notice

Product Description:
The ram carries the planing knife for horizontal and linear movement. The tool holder can rotate at an angle in the vertical plane and can be manually fed. The worktable carries the workpiece for intermittent horizontal or vertical feed movement for processing planes and grooves. Grooves and dovetail surfaces can also be used to machine shaped surfaces, such as turbine blades. The ram and sliding seat can also move on the bed (horizontal type) or column (vertical type), which is suitable for planing the local plane of super large workpieces. Use the knives of the reversal movement to cut the workpieces that have been fixed on the working platform of the machine tool.

Product Features:
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
