Technical Parameter :
|Maximum planing length||mm||850|
|Maximum distance from ram floor to work surface||mm||400|
|Maximum lateral movement distance of worktable||mm||710|
|Maximum vertical movement distance of worktable||mm||360|
|Size of working surface on worktable (length×width)||mm||800*450|
|Tool post stroke||mm||160|
|Swivel angle of tool post||°||±60|
|Ram reciprocating times per minute||17，24，35，50，70，100|
|Range of table motorized feed||Horizontal feed (12 levels)||mm||0.25-3|
|Vertical feed (12 levels)||mm||0.12-1.5|
|Fast moving speed of worktable||Horizontal feed||mm||1.2|
|Central T-slot size of worktable||mm||22|
|main motor power||kw||5.5|

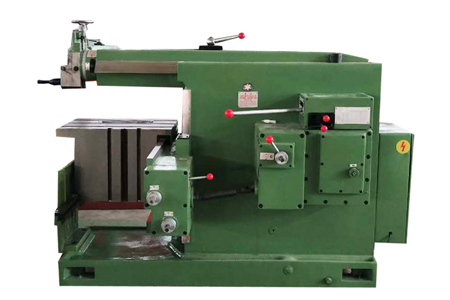

The ram carries the planing knife for horizontal and linear movement. The tool holder can rotate at an angle in the vertical plane and can be manually fed. The worktable carries the workpiece for intermittent horizontal or vertical feed movement for processing planes and grooves. Grooves and dovetail surfaces can also be used to machine shaped surfaces, such as turbine blades. The ram and sliding seat can also move on the bed (horizontal type) or column (vertical type), which is suitable for planing the local plane of super large workpieces. Use the knives of the reversal movement to cut the workpieces that have been fixed on the working platform of the machine tool.
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
