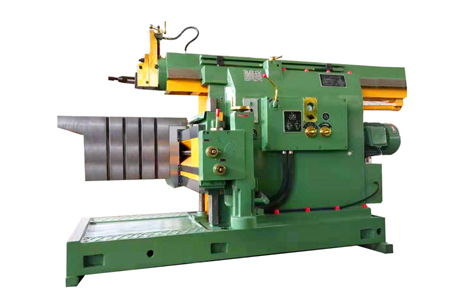

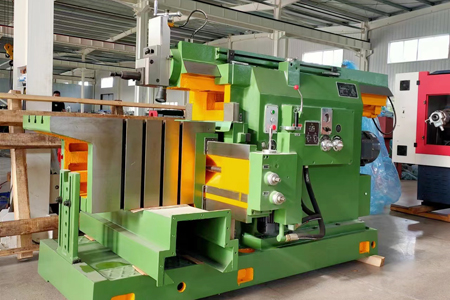

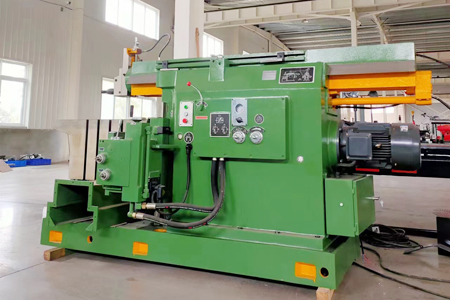

Hydraulic Bull Head Shaping Machine BY60100
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | UNIT | BY60100 |
| Maximum planing length | mm | 1000 |
| Ram working stroke speed (stepless) | mm/min | 3-44 |
| Distance from the bottom of the ram to the work surface | mm | 80-400 |
| Maximum cutting force | N | 28000 |
| Maximum stroke of tool post | mm | 160 |
| Maximum size of planer handle (width×thickness) | mm | 30×45 |
| Size of working surface on worktable (length×width) | mm | 1000×500 |
| Central T-slot size of worktable | mm | 22 |
| Maximum horizontal stroke of worktable | mm | 800 |
| The horizontal feed range of the worktable for each reciprocating stroke of the ram (stepless) | mm | 0.25-5 |
| Main motor | kw | 7.5 |
| Fast moving motor of worktable | kw | 0.75 |
| Dimensions (length×width×height) | mm | 3615×1574×1760 |
| Net weight/Gross weight | kg | 4200/4350 |
Product Description:
The ram carries the planing knife for horizontal and linear movement. The tool holder can rotate at an angle in the vertical plane and can be manually fed. The worktable carries the workpiece for intermittent horizontal or vertical feed movement for processing planes and grooves. Grooves and dovetail surfaces can also be used to machine shaped surfaces, such as turbine blades. The ram and sliding seat can also move on the bed (horizontal type) or column (vertical type), which is suitable for planing the local plane of super large workpieces. Use the knives of the reversal movement to cut the workpieces that have been fixed on the working platform of the machine tool.
Product Features:
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
