Technical Parameter :
|Capacity||Max swing over bed||mm||φ660|
|Max swing over slide||mm||φ400|
|Max. distance between centers||mm||1500/2000/3000/4000|
|Max. machining length||mm||1400/1900/2900/3900|
|Bed way width||mm||560|
|Spindle||Spindle aperture diameter||mm||φ105|
|Spindle hole taper||1:20(metric taper)|
|Spindle speed||r/min||14 steps 12.5-1120|
|Feed and thread||Max travel of upper tool rest||mm||200|
|Max travel of lower tool rest||mm||480|
|Crosswise feed||mm/r||64 sorts 0.031-7.0|
|Longitudinal feed||mm/r||64 sorts 0.062-14.0|
|Metric thread||mm||38 sorts 0.5-56|
|Inch thread||t.p.i||43 sorts 56-0.5|
|Module thread||πmm||21 sorts 0.25-7|
|D.P. thread||DP||27 sorts 56-4|
|Max quill travel||mm||250|
|Taper hole (Morse)||Morse taper No.5|
|Coolant pump motor||kW||0.18|

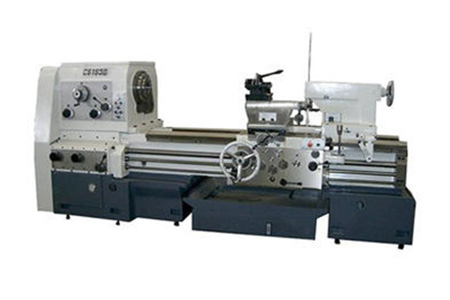

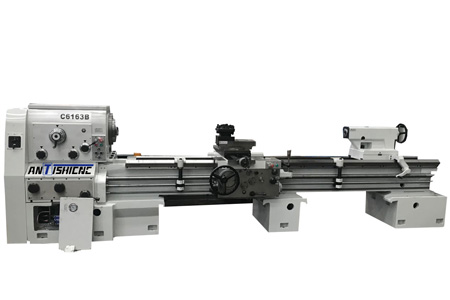

This lathe is able to perform internal/external cylindrical turning, taper turning and other sort of turnings, facing, threading such as Metric, Inch, Module and D.P threads; drilling, reaming, tapping and grooving, etc.
(1) Distortion resistant horizontal bed made of quality cast iron; induction hardened guide way, 560mm wide span.
(2) Mating part of the guide way stuck with teflon tape is wearable, shock proof and accuracy lasting.
(3) The spindle is in three support design, high rigid, high accurate and able to perform heavy cut. Diameter of spindle thru-hole is Φ105mm.
(4) Wide range of 14 step speeds always allows selecting desired speed.
(5) Direct cutting of metric and inch threads.
(6) The spindle can be rotated in jogging mode. Braking is quick.
3-jaw chuck and adapter
4-jaw chuck and adapter（For C6163B）
4-station conventional tool post
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post（American /Italy/European type）
Taper turning attachment
Digital readout（2/3 AXIS）
Siemens electrical appliances
