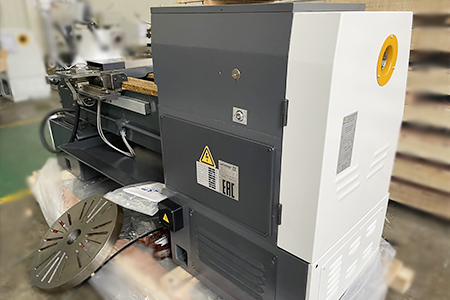

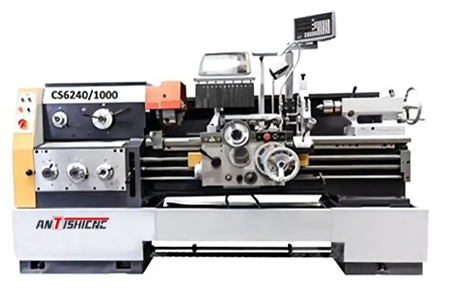

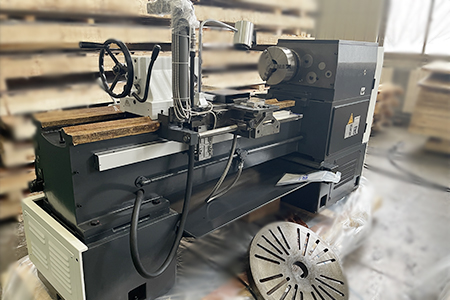

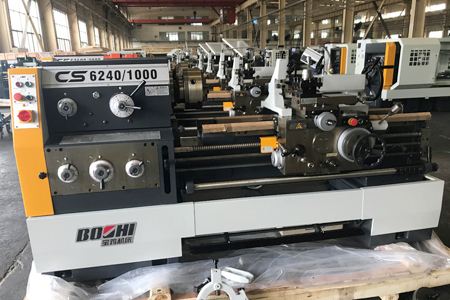

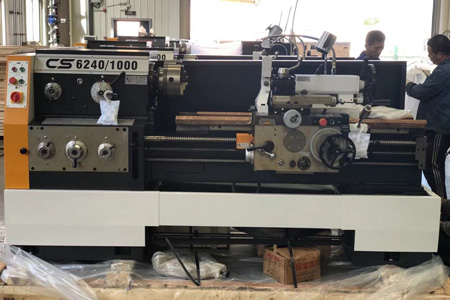

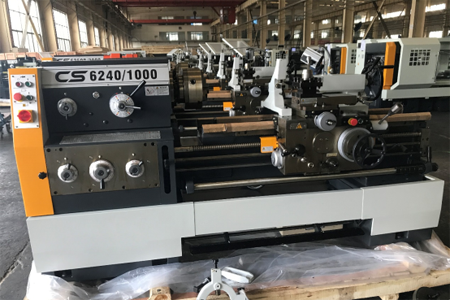

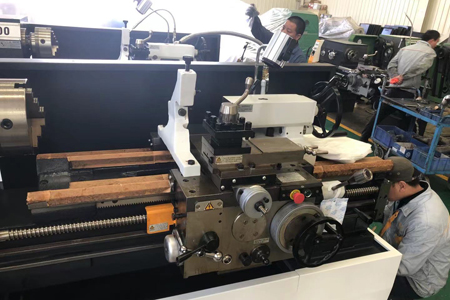

CS6240 universal horizontal parallel lathes
Max swing over bed : Φ400 mm
Max swing in gap : Φ630 mm
Spindle aperture : Φ52 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Item | Unit | Parameter | |
CS6240 | |||
Capacity | Max swing over bed | mm | φ400 |
Max swing in gap | mm | φ630 | |
Effective length in gap | mm | 240 | |
Max swing over slide | mm | φ220 | |
Max workpiece length | mm | 750/1000/1500/2000/3000 | |
Machine bed width | mm | 390 | |
Spindle | Spindle aperture diameter | mm | φ52 |
Spindle nose | ISO 702/Ⅲ No.6 bayonet type | ||
Spindle speed | r/min | 24 step 9-1600 | |
Spindle motor | kW | 7.5 | |
Tailstock | Quill dia./travel | mm | φ75/150 |
Taper of center | MT | 5 | |
Tool post | Number of station/
Tool section |
4/25X25 | |
Feed | Max. travel of upper toolpost | mm | 145 |
Max. travel of lower toolpost | m/min | 320 | |
X-axis feed | mm/r | 93 sorts 0.012-2.73 | |
Z-axis feed | mm/r | 93 sorts 0.028-6.43 | |
Metric thread | mm | 48 sorts 0.5-224 | |
Inch thread | t.p.i | 48 sorts 72-1/8 | |
Module thread | πmm | 42 sorts 0.5-112 | |
DP thread | DP | 42 sorts 56-1/4 | |
Others | Coolant pump motor | kW | 0.06 |
Machine length | mm | 2382/2632/3132/3632/4632 | |
Machine width | mm | 975 | |
Machine height | mm | 1230 | |
Machine weight | kg | 1795/2050/2250/2450/2850 |
Product Introduction:
1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P.;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6. Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose;
8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
Standard Equipment
3-jaw chuck and adapter
4-jaw chuck and adapter(For CS6240)
4-station conventional tool post
Drive plate
Faceplate(For CS6240)
Steady rest
Follow rest
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Spanner
Hook spanner
Oil gun
Optional Equipment
Live Center
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post(American /Italy/European type)
Chuck guard
Tool-post guard
Taper turning attachment
Digital readout(2/3 AXIS)
Siemens electrical appliances
Quick release
Screw protection
