Universal lathe

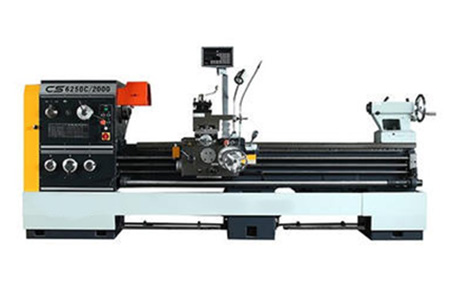

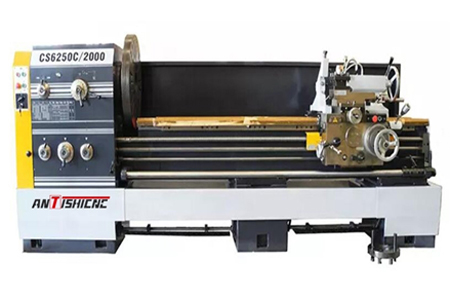

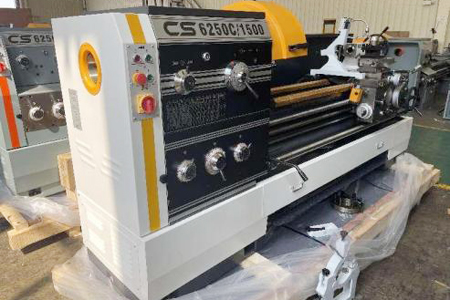

CS61/6250C series Universal Lathes

Max swing over bed : Φ500 mm

Max swing in gap : Φ710 mm

Spindle aperture : Φ105 mm

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item Unit Parameter
CS6150C CS6250C
Capacity Max  swing over bed mm Φ500
Max  swing in gap mm Without gap Φ710
Effective  length in gap mm Without gap 240
Max  swing over slide mm Φ300
Max  workpiece length mm 1000/1500/2000/3000
Machine bed width mm 390
Spindle Spindle aperture diameter mm Φ105
Spindle  nose ISO  702/Ⅱ No.8 cam-lock type
Spindle  speed r/min 12  step 32-1600
Spindle  motor kW 7.5
Tailstock Quill  dia./travel mm φ75/150
Taper  of center MT 5
Tool  post Number  of station/

Tool  section

4/25X25
Feed Max. Travel of upper toolpost mm 145
Max. Travel of lower toolpost m/min 320
X-axis  feed mm/r 65  sorts 0.027-1.07
Z-axis feed mm/r 65  sorts 0.063-2.52
Metric  thread mm 22  sorts 1-14
Inch  thread t.p.i 25  sorts 28-2
Module  thread πmm 18  sorts 0.5-7
DP  thread DP 24  sorts 56-4
Others Coolant  pump motor kW 0.06
Machine  length mm 2632/3132/3632/4632
Machine  width mm 975
Machine  height mm 1270
Machine  weight kg 2100/2300/2500/2900

Product Introduction:

1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

2. Threading Inch, Metric, Module and D.P.;

3. Perform drilling, boring and groove broaching;

4. Machine all kinds of flat stocks and those in irregular shapes;

5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

6. Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;

7. There are hand brake and foot brake for users to choose;

8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

Standard Equipment
3-jaw chuck and adapter
4-jaw chuck and adapter(For CS6250C)
4-station conventional tool post
Drive plate
Faceplate(For CS6250C)
Steady rest
Follow rest
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Spanner
Hook spanner
Oil gun

Optional Equipment
Live Center
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post(American /Italy/European type)
Chuck guard
Tool-post guard
Taper turning attachment
Digital readout(2/3 AXIS)
Siemens electrical appliances
Quick release
Screw protection
