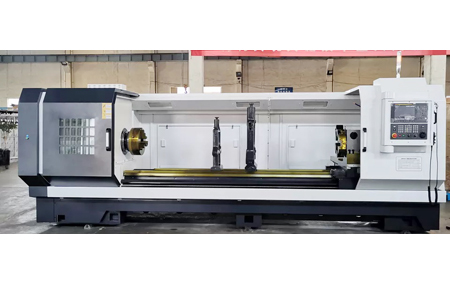

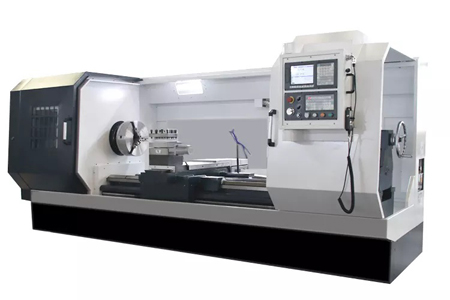

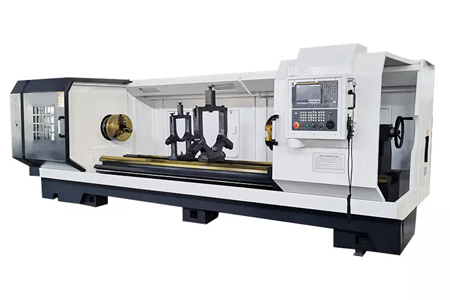

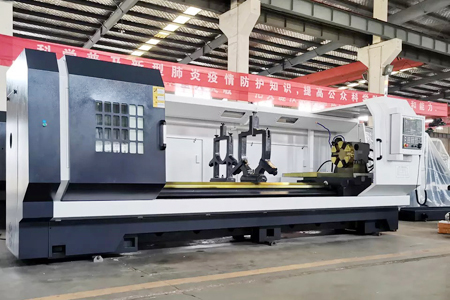

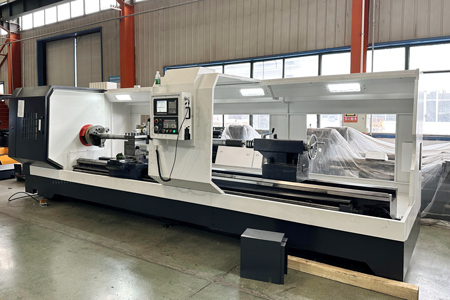

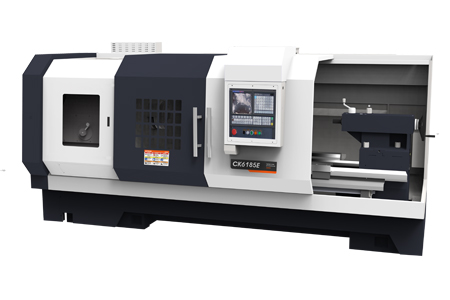

|Swing over bed||mm||630||800||850|
|Swing over cross slide||mm||320||480||500|
|Max.Work piece Length||mm||850/1350/1850/2850||1350/1850/2850/3850||900/1400/1900/2900/3900|
|Spindle speed steps||–||Manual 3 steps||Manual 4 steps||3 speed mechanical speed regulation|
|Spindle speed range||rpm||10-85/40-350/100/800||30-84，53-150，125-350，300-800||10-85,40-350,100-800|
|Turret/tool post||–||Electric 4 position||Electric 4 position||Electric 4 position|
|Tool size||mm||32x 32||32 x 32||32 x 32|
|X axis travel||mm||315||425||450|
|Z axis travel||mm||1000/1500/2000/3000||1500/2000/3000/4000||1000/1500/2000/3000|
|X axis rapid traverse||mm/min||6000||6000||4000|
|Z axis rapid traverse||mm/min||8000||8000||5000|
|Tailstock quill diameter||mm||100||130||100|
|Tailstock quill taper||–||MT6||MT6||MT6#|
|Tailstock quill travel||mm||250||250||250|
|Main spindle motor||kw||11||15||11|
|Dimension for 1000||mm||3500/4000/4500/5500x2000x2000||4000/4300/4800/5800x2000x2000||3300/3800/4300/4800/5800×2000×2000|

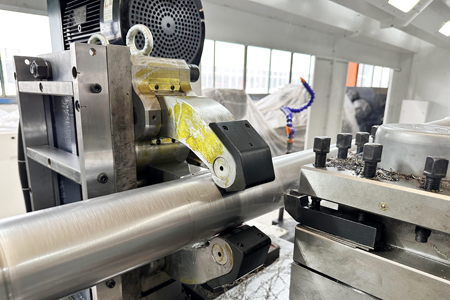

CNC lathe is one of the widely used CNC machine tools. CK Series machine can undertake a variety of turning work-piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whit worth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals. It is widely used in wind power, petroleum, chemical,paper making, textile, mining, and so on. It is widely used in wind power, oil, chemical industry, paper making, textile, mining,
Ship, aviation, rubber, mold, auto parts, processing such as steam turbine rotor, belt, generator, turbine rotor, machine spindle, hoist, and so on machinery manufacturing industry.
1. This series lathe has compact structure, pleasant appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention.
2. Bed-stock optimization design is suitable for turning disc and shaft parts. It can process straight line, arc, metric and British threads and multi-head threads. It can also be used for turning disc and shaft parts with complex shape and high precision.
3. The lathe guideway and saddle guideway adopt the hard guideway of special material. After high frequency quenching, they are super hard and wear-resistant, durable and have good processing accuracy.
4. The CNC system adopts GSK system and the famous ball screw and high precision screw bearing made in China.
5. The spindle with high precision spindle bearing group and precise assembly and dynamic balance test ensures high accuracy, low noise and strong rigidity of the spindle.
6. Forced automatic lubrication device is used for fixed-point quantitative lubrication of lead screw and guide rail at each lubrication point. When there is abnormal condition or insufficient oil, warning signals are automatically generated.
1.System: GSK CNC System
2. Manual 3-jaw chuck.
3. 4-station electric tool post.
4. Manual tail-stock
5. Cooling system.
6. Automatic lubrication system.
1. CNC system: SIEMENS, FANUC
2. Hydraulic chuck/Pneumatic chuck.
3. Hydraulic tail-stock/Pneumatic tail-stock.
4. Horizontal 6-station turret/8-station turret.
5. Auto bar feeder
6. Chip conveyor
