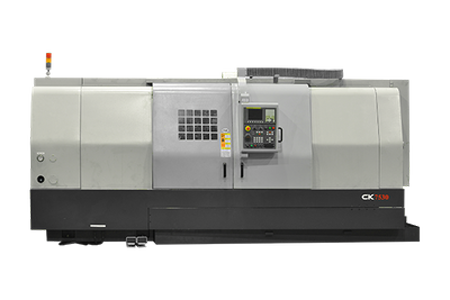

CK7530 series CNC lathes
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Item | Description | Unit | Data | |
| Power turret | Hyd. Turret | |||
| Capacity | Max swing over bed/slide | mm | Φ670/Φ470 | |
| Max turning length | mm | 1500(800) | ||
| Max turning dia | mm | Φ600 | Φ550 | |
| Max bar dia | mm | Φ90 | ||
| Spindle | Hydraulic chuck dia | mm | Φ305 | |
| Spindle nose | A2-8（GB5900.1） | |||
| Spindle thru-hole | mm | Φ105 | ||
| Spindle speed | r/min | 25–2500 | ||
| L:12-830 H:50-2500(with speed reducer) | ||||
| Main motor(cont./30min) | kW | 22/30; 22/26(with speed reducer) | ||
| Tailstock | Quill dia/travel | mm | Φ110/150 | |
| Center taper of standard/live spindle structure | MT No. | 6/5 | ||
| Carriage | Slant angle | DEG | 60° | |
| X/Z-axis travel | mm | 325/1550(880) | 305/1550(880) | |
| X/Z-axis rapid traverse | m/min | 12/16 | ||
| Turret | Number of stations | 12/8 | 12/8 | |
| Tool section(turning/boring) | mm | 32×32/Φ50 | ||
| Others | Power supply | kVA | 60 | |
| Dimension(L×W×H ) | mm | 4820×2130×2180（3820×1990×2040） | ||
| Gross weight(net) | kg | 9730(8330) | ||
Introduction
CK7530 series CNC lathes,its strength, dynamic and static rigidity, mechanics of main parts, guard and coolant system are all advanced in design. This series lathe, designed with high vibration strength, adopts high grade cast iron, one piece of bed base, slant guideways, a high precision through-hole spindle driven by large-field AC main motor.
Key parts like bearings of main spindle and of feeding screw are all famous foreign products. The multi-station turret indexes fast and continuously with a high repeatability and changes tool proximately. The lathe can be equipped with FANUC 0i-TD, FANUC 0i Mate-TD, Siemens 810D, 802D, DASEN 3i and etc on request. or other top brand control systems from both China and foreign countries (hydraulic parts, lubrication units and chucks that are good-quality from both domestic and foreign markets).
The lathe is designed with unique appearance, easy-operated panel, full-enclosed guard, which can prevent the leakage of water, power and oil effectively. It is the most powerful product in its class due to the large power, excellent accuracy and high performance.
