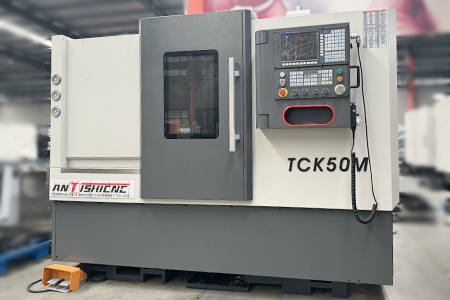

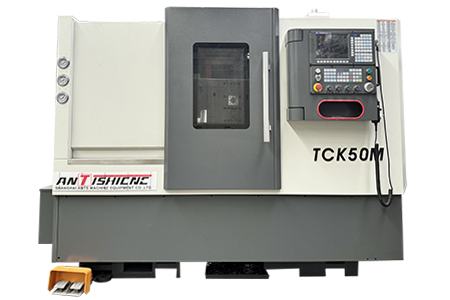

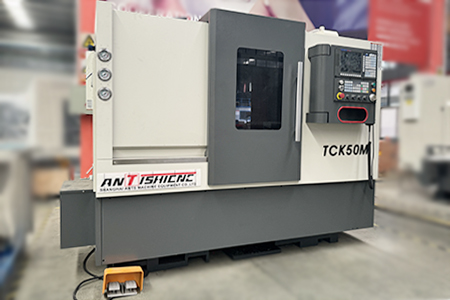

TCK50Mx1500 Slant Bed CNC lathe Machine
Max. rotation diameter on the bed:Φ560mm
Max rotation diameter on the slide:Φ300mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Unit | TCK50Mx1500 | |
| Maximum rotation diameter on the bed | mm | Φ560 | |
| Maximum rotation diameter on the slide | mm | Φ300 | |
| Center distance | mm | 1500 | |
| Maximum disc processing diameter | mm | Φ400 | |
| Maximum turning length | mm | 1400 | |
| Spindle end type | / | A2-8 | |
| Spindle through hole diameter | mm | Φ86 | |
| Bar diameter | mm | Φ75 | |

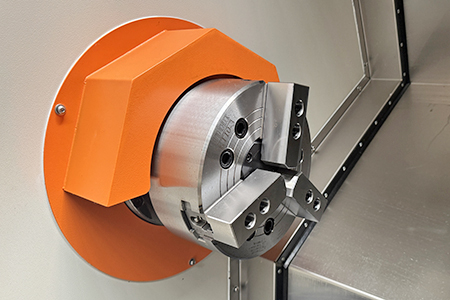

| Hydraulic chuck | mm | 10寸 | |
| Hydraulic chuck tie rod through hole | mm | Φ75 | |
| Guide rail type | / | Linear guide | |
| Spindle taper taper | No | Metric 92 1:20 | |
| Spindle limit speed | rpm | 3000rpm | |
| Tailstock sleeve diameter | mm | 90 | |
| Tailstock sleeve inner hole taper | No | Morse 5# | |
| Tailstock sleeve stroke | mm | 80 | |
| Tailstock sleeve type | / | Hydraulic | |
| Tailstock stroke | mm | 960 (servo) | |
| Power turret tool | Position | 12 | |
| Tool seat model | / | BMT45 | |
| Power turret chuck | / | ER25 | |
| Turning tool body size | mm | 25´25 | |
| Tool seat aperture | mm | Æ32/40 | |
| Screw Model | X-axis | / | 3210 |
| Z-axis | / | 5010 | |
| Tailstock | / | 4010 | |
| Guide rail model | X-axis | / | RGH45CA2R725 |
| Z-axis | / | RGH45CA2R2250 | |
| Tail-stock | / | RGH45CA2R2155 | |
| X/Z/motor torque | N.M | 15/15/15 | |
| X/Z fast moving speed | m/min | 18/18 | |
| X travel | mm | 260 | |
| Z travel | mm | 1500 | |
| Minimum setting unit | mm | 0.0001 | |
| Main motor power | KW | 15 | |
| Total power | KW | 30 | |
| Net weight of machine tool | Kg | 5000 | |
| Dimensions (L*W*H) | mm | 4100*2170*2200 | |
TCK50Mx1500 Slant Bed CNC lathe Machine Product Introduction :
This series of machine tools is the mature product mainly exported by Shanghai ANTISHICNC. The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent precision retention. It adopts a 45° overall inclined bed structure and is equipped with high-precision pre-loaded Taiwan linear roller guides. The machine tool has high position accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining. It is precisely assembled with a high-precision spindle unit and a spindle box.
Standard Equipment
| Part Name | Specifications | Quantity | Supplier | |
| CNC system | GSK988T | 1 set | GSK,CHINA | |
| Spindle motor | ZJY265A-15BL-B35 | 1 set | GSK,CHINA | |
| Spindle unit | CK230A2-8PLT | 1 set | CHINA | |
| Spindle bearing | NN3024K+7024AC/DB+ NN3022K | 1 set for each | CHINA | |
| Guide Rail | X-axis | RGH45CA2R725 | 2 sets | HIWIN/PMI |
| Z-axis | RGH45CA2R2250 | 2 sets | HIWIN/PMI | |
| Tailstock | RGH45CA2R2155 | 2 sets | HIWIN/PMI | |
| Ball Screw | X-axis | 3210/703 | 1 set | HIWIN/PMI |
| Z-axis | 5010/2139 | 1 set | HIWIN/PMI | |
| Tailstock | 4010/1952 | 1 set | CHINA | |
| Screw bearings | 25TAC62/30TAC62 | 2 sets for each | NSK | |
| 40TAC72 | 5 sets | NSK | ||
| Tool Turret | TCSD-80-12T | 1 set | TAIWAN | |
| Power tool holder | 0 degrees (optional) | 1 set | TAIWAN | |
| Power tool holder | 90 degrees (optional) | 1 set | TAIWAN | |
| Automatic lubrication device | RBCLB-3ZK | 1 set | CHINA | |
| Cooling pump | 450W | 1 set | CHINA | |
| Hydraulic station | 2.2kw | 1 set | CHINA | |
| Hydraulic chuck | KT0-3/A2-8 | 1 set | CHINA | |
Optional accessories
| Name | Specifications |
| Control System | FANUC/SIEMENS |
| Chip conveyor | Chain plate type |
