CNC horizontal lathe

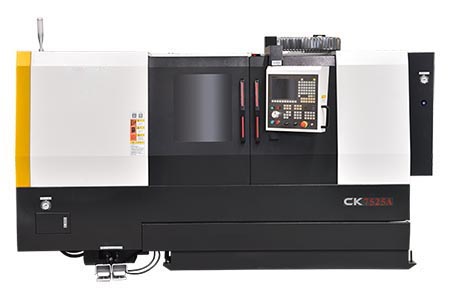

CK7525 series CNC lathes

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Introduction

CK7525 series CNC lathe, adopts high grade cast iron, integral machine bed, slant guideways,through-hole spindle driven by large-field AC main motor and dampeningdesign. bearings of main spindle and offeeding screw with low noise during operation, The multi-station power turretindexes fast continuously in bi-direction..

This series lathe can be equipped with FANUC0i-TF, Siemens 828D or other control systems.

ITEMS UNIT CK7525 CK7525A CK7525C
Capacity Max.swing diameter over bed mm(in) φ550(21.654) φ550(21.654) φ550(21.654)
Max.swing dia. over slide mm(in) φ370(14.567) φ370(14.567) φ280(14.567)
Max.turning diameter mm(in) φ450(17.717) φ450(17.717) φ450(17.717)
Max.turning length mm(in) 500/1000/1500(19.685/39.370/59.055) 500/1000/1500(19.685/39.370/59.055) 500/1000/1500(19.685/39.370/59.055)
Max.bar diameter mm(in) φ73(2.874) φ73(2.874) φ73(2.874)
Spindle Type of spindle nose A2-8 A2-8 A2-8
Spindle bore diameter mm(in) φ87(3.425) φ87(3.425) φ87(3.425)
Chuck diameter mm(in) φ254(10″) φ254(10″) φ254(10″)
Spindle speeds r/min(rpm) 30-3000 75-1500 30-3000
Spindle motor power(continuous/30min) kW

(hp)

15/18.5

(20.4/25.16)

18.5

(25.16)

15/18.5

(20.4/25.16)

Tailstock Quill diameter mm(in) φ100(3.937) φ100(3.937) φ100(3.937)
Quill travel mm(in) 100(3.937) 100(3.937) 100(3.937)
Taper of center(standard/alive spindle) Morse No.5/4 Morse No.5/4 Morse No.5/4
Feeds Travel X/Z mm(in) 250/525

(9.843/20.669)

250/1010

(9.843/39.764)

250/1550

(9.843/61.024)

250/525

(9.843/20.669)

250/1010

(9.843/39.764)

250/1550

(9.843/61.024)

250/520

(9.843/19.685)

250/1010

(9.843/39.764)

Rapid traverse rate X/Z m/min(ipm) 12/16(472/630) 12/16(472/630) 24/24(945/945)
Turret Number of turret station 12/8 12/8 12/8
Tool size(turning/boring) mm 25×25/φ40 25×25/φ40 25×25/φ40
Other Slant degree of bed 45° 45° 45°
Power supply kVA 50 50 50
Dimensions (L×W×H) mm(in) 2980×1850×2050 (117.3×72.8×80.7)

3785×1850×1930  (149×72.8×76)

4600×1850×2050  (181.1×72.8×80.7)

2980×1850×2050 (117.3×72.8×80.7)

3785×1850×1930

(149×72.8×76)

4600×1850×2050 (181.1×72.8×80.7)

2980×1850×2050 (117.3×72.8×80.7)

3785×1850×1930

(149×72.8×76)

Weight kg

(lbs)

4800/5000/6700

(10,584/ 11,025/14,773)

4800/5000/6700

(10,584/ 11,025/14,773)

5100/5300

(11,246/116,86)
