CNC horizontal lathe

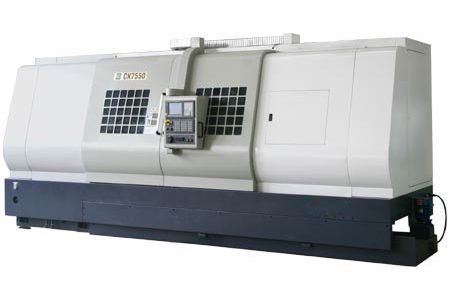

CK7550 CNC lathe

Warranty : 1 Year for machinery warranty

Availability : On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Introduction

Highefficiency lathe for large-scale chuck type and shaft-type workpieces.

withhigh-grade cast iron bed , 60 degree slant bed type structure provides moreconvenient chip disposal, easy handling of workpieces and stable operation.

High rigidity structure and cartridge typemain spindle ensure rotation without vibration. Large power AC spindle motor,ZF two-step reducer and gear box speed reducing provide spindle large torqueoutput and stable rotation.

8-stationhydraulic turret.

Slideguide way and saddle guide way are coated with special plastics. Bed way aremedium frequency hardened and precision grounded. Hydraulic balancing system isapplied in X axis.

Full enclosed guard and Centralized machineoperator’s panel.

Capacity Item Unit Specification
1500 2000 3000
Max. swing over bed mm(in) Φ850(33.464)
Max. swing over slide mm(in) Φ600(23.622)
Max. turning dia. mm(in) Φ750(29.527)
Max. turning length mm(in) 1500(59.055) 2000(78.740) 3000(118.110)
Spindle Hydraulic chuck dia. mm(in) Φ530(21)
Spindle nose GB5900.1 A2-11
Spindle thru-hole mm(in) Φ135(5.314)
Spindle speed r/min(rpm) L:8-530 H:30-1200
Power of spindle motor

(cont./30min)

Kw(ph) 30(40.8)/37(50.3)
Tailstock Dia./ travel of quill mm(in) 150(5.9)/150(5.9)
Taper of center MT No. 6
Carriage Slant angle deg 60°
Travel X/Z mm(in) 385(15.1)/1540(60.6) 385(15.1)/2040(80.3) 385(15.1)/3050(120)
Rapid traverse X/Z m/min

(ipm)

10(393)/12(472)
Turret Number of stations 8
Tool setting size turning/milling mm □32×32/63
Others Power source kVA 75
Dimension (L×W×H) mm(in) 5420(213.3)×2800(110.2)×2770(109) 5870(231.1)×2683(105.6)×2649(104.3) 7360(289.7)×2800(110.2)×2770(109)
Gross weight Kg(lbs) 15000(33075) 16000(35280) 20000(44100)
