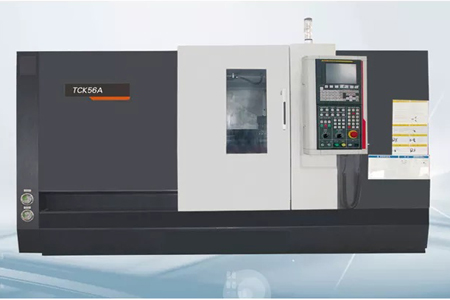

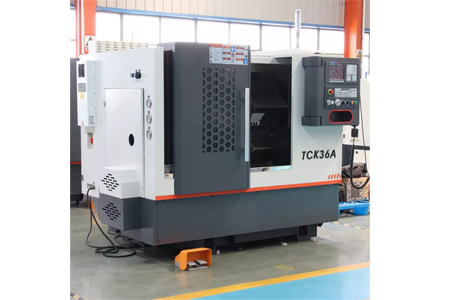

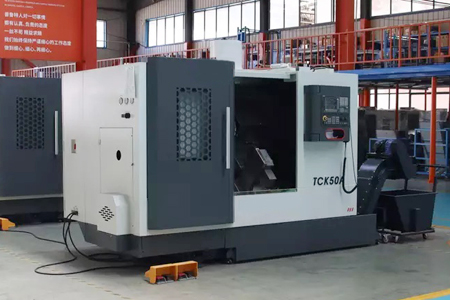

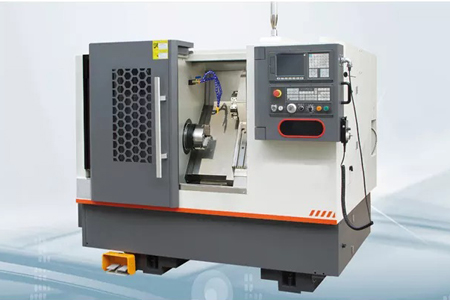

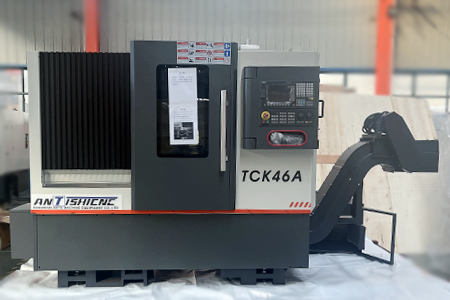

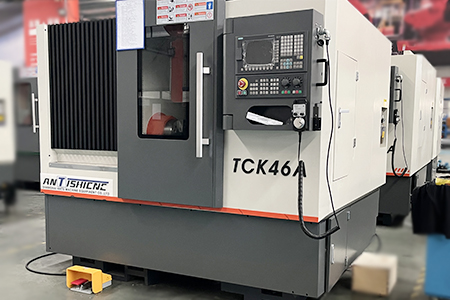

TCK36A TCK46A TCK50A TCK56A TCK66A High Accuracy Auto Slant Bed CNC Lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Specifications | Units | TCK36A | TCK46A | TCK50A | TCK56A | TCK66A |
| Swing over bed | mm | 360 | 460 | 560 | 560 | 660 |
| Swing over cross slide | mm | 140 | 260 | 260 | 300 | 400 |
| Max.Work piece Length | mm | 350 | 400/320 | 400/320 | 500 | 700 |
| Spindle bore taper | A2-5 | A2-5 | A2-6/8 | A2-6 | A2-8 | |
| Spindle speed steps | – | Step-less | Step-less | Step-less | Step-less | Step-less |
| Spindle speed range | rpm | 4000 | 50-3500 | 3000 | 50-4000 | 0-2800 |
| Turret/tool post | – | Hydraulic 8 position | Hydraulic 8/12 position | Hydraulic 8/12 position | 8/12 Station | 8/12 Station |
| Tool size | mm | 20*20 | 25×25/Ø32 | 25*25 | 25×25/Ø32 | 25×25/Ø32 |
| X axis travel | mm | 170 | 240 | 240 | 200 | 260 |
| Z axis travel | mm | 350 | 400 | 400/540/900 | 550 | 800 |
| X axis rapid traverse | mm/min | 18000 | 24000 | 24000 | 24000 | 24000 |
| Z axis rapid traverse | mm/min | 18000 | 24000 | 24000 | 24000 | 24000 |
| Tailstock quill diameter | mm | 65 | 70 | 70/88 | 74 | 100 |
| Tailstock quill taper | – | MT4# | MT5# | MT5# | MT5# | MT5# |
| Tailstock quill travel | mm | 70 | 80 | 80 | / | / |
| Main spindle motor | kw | 5.5 | 7.5 | 7.5 | 11 | 11/14 |
| Weight | kg | 2400 | 3000 | 3200/3600/4500 | 4250 | 5000 |
| Dimension | mm | 2200x1600x1850 | 2500×1700×1890 | 2700/2700/3300*2000*2000 | 2950X1860X1850 | 3700X2000X2000 |
Product description
The TCK Series High Precision CNC Turning Center Slant Bed product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
Features
1.The inclined guide rail is mainly used to overcome gravity and have better stability to improve the precision of the machine tool
2.The inclined machine tool can effectively utilize the space and greatly reduce the plane occupied by the machine tool.
3.The inclined guide rail also facilitates the concentration of iron chips on the chip conveyor for automatic chip removal.
Standard accessories:
GSK CNC system
Taiwan linear guide
10 inch hydraulic chuck

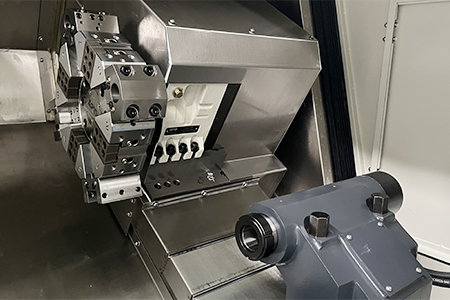

8 station hydraulic turret
Automatic lubrication system
Automatic cooling system
Work light
Tools & tool box
Optional accessories
Power turret
Chip conveyor
Siemens or FANUC CNC system
12 inch hydraulic chuck
