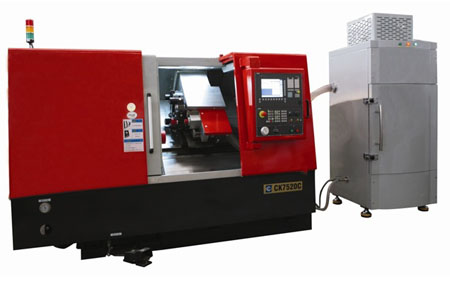

CK7520CM/CK40M/CK50M Sealing Ring Special CNC lathe
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| project | unit | CK7520CM | CK40M | CK50M | |
| Capacity | Max. swing diameter over bed | mm(in) | Φ500
(19.685) |
Φ400
(15.748) |
Φ500
(19.685) |
| Max.rotary diameter on the saddle | mm(in) | Φ240
(9.449) |
Φ260
(10.236) |
Φ320
(12.598) |
|
| Max.turning diameter | mm(in) | Φ280(standard cutter)/Φ330(
special cutter) （Φ11.024/Φ12.992） |
Φ250(standard cutter)
（Φ9.843） |
Φ280(standard cutter)
（Φ11.024） |
|
| Principle axis | mode of spindle head | A2-6（GB5900.1） | A2-5（GB5900.1） | A2-6（GB5900.1） | |
| spindle bore | mm(in) | φ62
(2.441) |
Φ57
(2.244) |
φ62
(2.441) |
|
| Diameter of spindle bearing(front/back) | mm(in) | Φ100/Φ90
(3.937/3.543) |
Φ90/Φ80
(3.543/3.150) |
Φ90/100
(3.543/3.937) |
|
| Spindle speed | r/min | 40-4000 | 70-3000 | 60-2250 | |
| Main motor power (continuous /30 minutes) | Kw
(hp) |
11/15
(15/20.4) |
7.5
(10.2) |
15
(20.4) |
|
| Apron | Angle of inclination | DEG | 45° | 45° | 45° |
| Move distance X/Z | mm(in) | 210/550
(8.268/21.654) |
165/410
(6.496/16.142) |
210/550
(8.268/21.654) |
|
| Rapid speed X/Z | m/min
(ipm) |
24/24
(945/945) |
12/16
(472/630) |
12/16
(472/630) |
|
| Servo motor torsion feed system X/Z | Nm | 12/22 | 11/20
(FANUC Oi-TF5) |
11/20
(FANUCOi-TF5) |
|
| Ball screw diameterX/Z | mm | Φ32/Φ40 | Φ28/Φ40 | Φ28/Φ40 | |
| Tool rest | Stations | 8 | 8 | 8 | |
| Cutter size (turning/boring) | mm | 20×20/Φ32 | 20×20/Φ32 | 25×25/Φ40 | |
| chip breaking device | Motor power | kW(hp) | 0.25(0.34) | 0.25(0.34) | 0.25(0.34) |
| Suction crumbs device | Motor power | kW(hp) | 5.5(7.48) | 5.5(7.48) | 5.5(7.48) |
| Suction crumbs volume | L | 400 | 400 | 400 | |
| others | power | kVA | 35 | 35 | 35 |
| volumn（length×width×height）
(not stripper) |
mm(in) | 2860×1830×2020
(112.6×72×79.5 ) |
2370×1670×1970
(93.3×65.7×77.6) |
2860×1830×2020
(112.6×72×79.5 ) |
|
| volumn（length×width×height）
(stripper) |
mm(in) | 4860×1830×2170(191.3×72×85.4 ) | 4370×1670×2120
(172.1×65.7×83.5 ) |
4860×1830×2170(191.3×72×85.4 ) | |
| Total weight (net weight) | Kg
(lbs) |
5000 | 3500(7717) | 5000(11,025) |
Introduction
This series of machine tools is specially designed for the cutting of special materials,such as rubber and engineering plastics.The main body of machine tool adoptsthe structure of high strength cast iron, the key parts are analyzed by finiteelement analysis, the whole machine is rigid and high, and the high speedmachining stability is good.The machine adopts servo spindle, the two axis islinear guide rail, improves its machining accuracy and high speed feedperformance, shorten the auxiliary time.The machine tool design pays attentionto the environmental protection function, the inclined bed body structure andthe cooling system can take away the heat generated by the cutting processquickly;Cuttings and cuttings can be used to quickly and automatically recoverthe chip.
This machine is especially suitable for high speed and high precisionmachining of rubber and engineering plastics.
The design of the machine tool is novel, the panel iseasy to operate, the whole sealing is protected, the three leakage effect isespecially obvious.Combined with its high power, high precision and highperformance.
Performance characteristics of machine tool
1. Adopting imported or domestic high-quality precisionspindle bearing, high rigidity, high precision spindle bearing.
2. arrangement,grease lubrication, v-belt transmissionand stable spindle operation.
3. Full-body high-strength cast iron bed has goodvibration and thermal stability, reducing vibration and improving the rigidity,durability and machining precision of the machine tool.
4. Adopting imported or domestic high-end numericalcontrol system, electric cabinet adopts temperature control device, centralizedmachine tool operation panel.
5. Fast feeding speed and high precision.
6. Using special mechanism knife disk to meet variouscutting requirements.
7. Using cuttings and cuttings to make the chiprecycling automatic and convenient.
