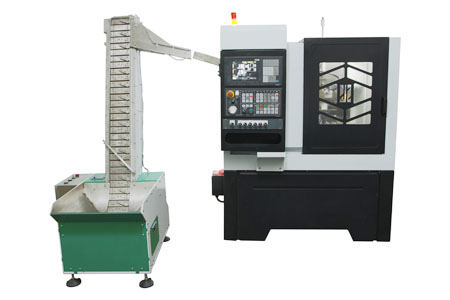

CNC Automatic manipulator loading and unloading robot customized CNC lathe machine production line
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Workpiece length | 20-100mm |
| Workpiece diameter | 4-32mm |
| Processing range | round, hexagonal, square |
| Spindle speed | 1400-3000 rev/s (adjustable speed) |
| Motor power | 2.2kw |
| X travel | 240mm |
| Z travel | 280mm |
| X direction motor power | 12Nm |
| Z direction motor power | 16Nm |
| X-direction feed speed | 6000mm/min |
| Z direction feed speed | 6000mim/min |
| Working pressure | 0.6MPA |
| Machine weight | 600kg |
| Feeding method | Front feeding/Back feeding/Vibrating plate feeding/Truss automation |
Product Introduction
The company has ordinary CNC lathes, fully automatic CNC lathes, semi-automatic instrument lathes, fully automatic instrument lathes, hydraulic lathes,
For valve machine tools, drilling machine tools, special machine tools for the tool industry (tool head/cutter bar/drill bit), etc., we can install automatic loading and unloading devices on ordinary CNC machine tools, automation design of CNC machine tools, and refit fully automatic machine tools with CNC. Multiple machine operations; Truss automation
Suitable products: various motor shafts, valve guides, rotors, automotive hubs, etc.
