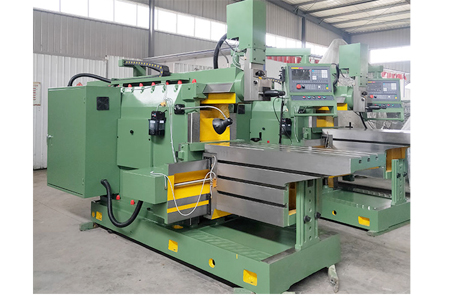

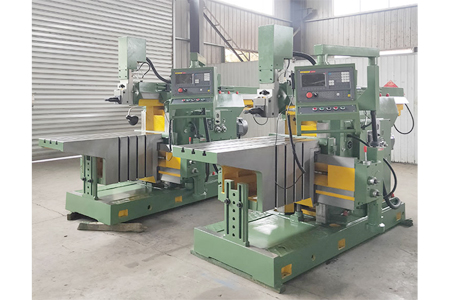

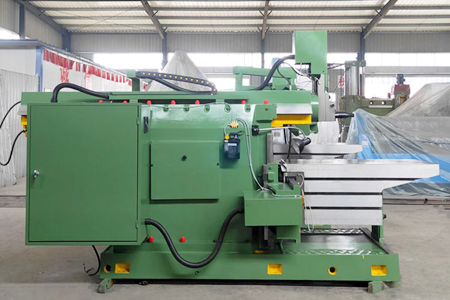

The ram carries the planing knife for horizontal and linear movement. The tool holder can rotate at an angle in the vertical plane and can be manually fed. The worktable carries the workpiece for intermittent horizontal or vertical feed movement for processing planes and grooves. Grooves and dovetail surfaces can also be used to machine shaped surfaces, such as turbine blades. The ram and sliding seat can also move on the bed (horizontal type) or column (vertical type), which is suitable for planing the local plane of super large workpieces. Use the knives of the reversal movement to cut the workpieces that have been fixed on the working platform of the machine tool.
The machine tool has advanced design, beautiful appearance, reliable performance, stable precision, simple operation and convenient maintenance.
Technical Parameter :
|Maximum planing length (mm)||1000|
|The maximum lateral movement distance of the worktable (mm)||800|
|The maximum distance from the bottom of the ram to the worktable (mm)||400|
|The maximum vertical movement distance of the worktable (mm)||380|
|Dimension of working surface of worktable (length×width) (mm)||1000×500|
|Turret stroke (mm)||160|
|Maximum turning angle of tool post (°)||±60°|
|Maximum size of planer handle (width×thickness) (mm)||30×45|
|The number of reciprocating rams per minute||15、20、29、42、58、83|
|Range of table motorized feed||Horizontal feed level 10 (mm)||0.3~3|
|Vertical feed 8 levels (mm)||0.15~0.5|
|Fast moving speed of worktable||Horizontal feed (mm)||3|
|Vertical feed (mm/min)||0.5|
|T-slot size in the center of the worktable (mm)||22|
|Main motor power (kw)||7.50|
|Dimension (length×width×height) (mm)||3640×1575×1780|
|Net weight/Gross weight (kg)||4870/5150|
