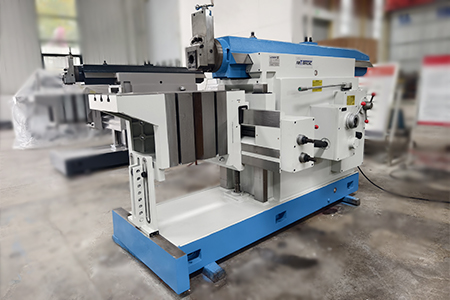

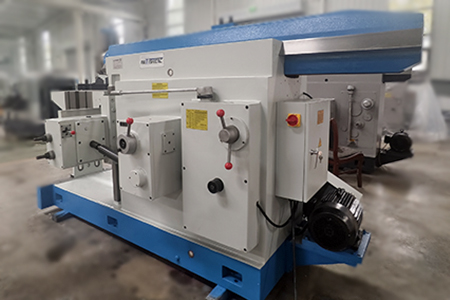

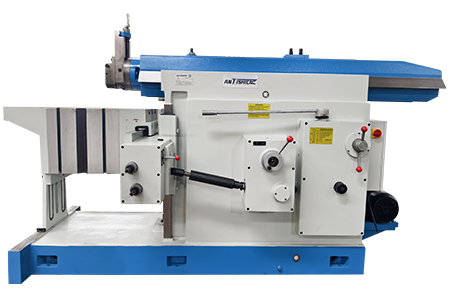

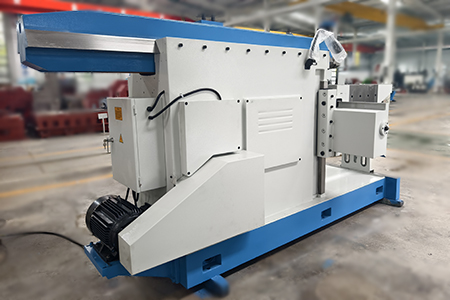

BC60100/BY60100 Bull head Shaper Machine
Max. planing length:1000mm
Tool frame travel:160mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Main technical parameters | BC60100/BY60100 |
| Maximum planing length(mm) | 1000 |
| Distance from the bottom of the ram to the table surface(mm) | 400 |
| lateral travel(mm) | 800 |
| vertical travel(mm) | 380/320 |
| Toolholder travel(mm) | 160 |
| Ram reciprocation (per minute) | 15/20/29/42/58/83 3-38M |
| Main motor power(kw) | 7.5 |
| Maximum size of shank (W×T) | 30×45 |
| Table center T-slot dimensions(mm) | 22 |
| Turning angle(°) | ±60°(Tool holder) |
| Worktable size(mm) | 1000×500 |
| Dimensions(mm) | 3640×1575×1780 |
| Machine weight (approx.)(kg) | 4870/5150。 4500/4700 |
| Package Size(mm) | 3200×1800×2100 |
BC60100/BY60100 Bull head Shaper Machine Product Introduction :
This machine is used for planing flat and forming surfaces. It is highly efficient in processing narrow and long planes and is suitable for single-piece and small-batch production.
The machine is mechanically driven, with stable speed, large cutting force, good rigidity, low oil temperature, small thermal deformation, stable working accuracy, beautiful shape and easy operation.
