Slotting Shaping Machine
|Swing over bed||mm||1500||2000/2500|
|Max.travelling distance of saddle||mm||1000||1000|
|Max.load between centers||ton||2.5||4|
|Bed width||mm||1100 (Two guide rails)||1100 (Two guide rails)|
|Spindle speed||rpm||2~200||1~ 125|
|Machine weight of 1 meters||kg||6500||7600/7800|
|Add weight per meter||kg||—||—|
|Machine outline size of 1 meters||L* w * h||3600X2650X1650||3850X2650/3150X1750/1900|

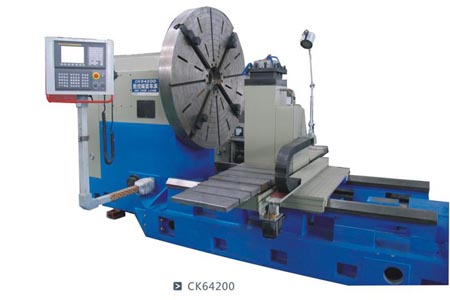

This machine tool is especially suitable for the turning of disc and ring parts, and the upper tool rest can be turned on a short taper independently. After adjusting the direction of the horizontal slide plate, parts with concave or convex end faces can be turned out. It can turn the inner and outer cylinders, end faces, curved surfaces of various parts, and can process ferrous and non-ferrous metals and their easy-cutting non-metallic materials.
The machine tool is equipped with a separate oil pump, forced lubrication, and fast movement; the machine tool has the inherent characteristics of high power, high speed, low noise, strong rigidity, high precision and good accuracy retention, and it has beautiful appearance, compact and reasonable layout, and operating handle Centralized, convenient and flexible operation, safe and reliable, pleasant and intuitive signs and other external features.
