Large-aperture tube lathe
For turning various pipe ends and taper pipe threads
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
Main specifications | unit | CW6628 | CW6636 | CW6646 |
Swing over bed | mm | 1000 | 1000 | 1200 |
Swing over carriage | mm | 720 | 650 | 800 |
Spindle bore | mm | 280 | 360 | 460 |
Max.load between centers | ton | 4 | 6 | 6 |
Bed width | mm | 600 | 755 | 970 |
Spindle speed | rpm | 5~ 435 | 3.15~315 | 3.15~315 |
Spindle motor | kw | AC18.5 | AC22 | AC30 |
Machine weight of 3 meters | kg | 6800 | 12000 | 14000 |
Add weight per meter | kg | 810 | 1000 | 1200 |
Machine outline size of 3 meters | L* w * h | 5826X1457X1785 | 6300X1750X1750 | 6300X2550X1850 |
Product description:

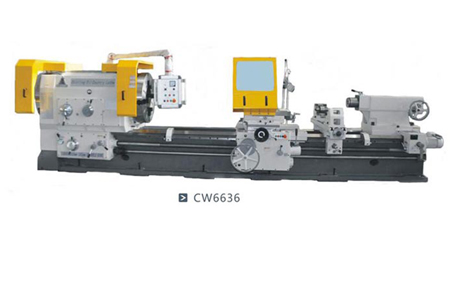

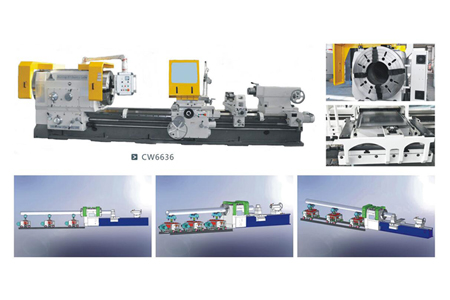

CW6636 large hole pipe threading lathe is mainly suitable for turning various pipe ends and taper pipe threads. In addition, it also has the function of ordinary horizontal lathes, which can turn the outer circle, inner hole, end face and metric thread, inch thread, Modular thread and pitch thread and other forming surfaces; the upper tool holder alone can be motorized to cut short tapers (cone generatrix length L≤300 mm), and the upper tool holder can be motorized to cut long tapers with longitudinal feed; in addition, It can meet the technological requirements of drilling, boring, nesting, etc. It is also suitable for powerful turning of cemented carbide tools and processing various ferrous and non-ferrous metals.
The CW6636 large hole pipe threading lathe has a structure such as rapid movement, terminal insurance, fixed-range cutting, separate oil pump lubrication, and overload safety protection. There is a four-jaw chuck on the front and back of the spindle for manual clamping of the workpiece. The machine tool has the inherent characteristics of high power, high speed, strong rigidity, good accuracy retention, and low noise; it also has external characteristics such as beautiful appearance, reasonable layout, pleasantness, and convenient operation.
