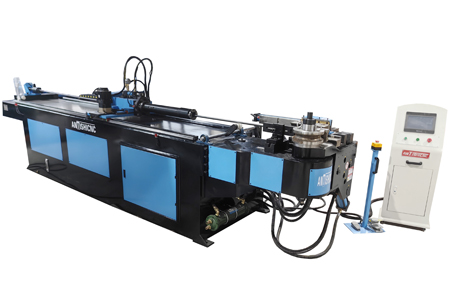

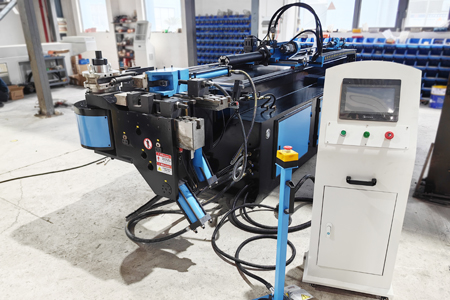

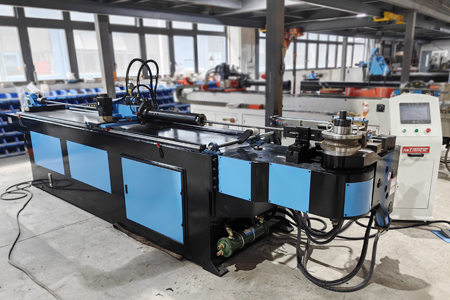

CNC Pipe Bending Machine DW75CNC-2A-1S
Max bending capacity : Φ75×3mm
Max bending radius : R350mm
Max bending angle : 190°
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Name | DW75CNC-2A-1S |
| Max bending capacity 1.5D carbon steel | Φ75×3mm |
| Max bending capacity 1.5D stainless steel | Φ63×3mm |
| Max feeding stroke (b) | 4200mm (standard); can be customized to lengthen |
| Max core threading stroke | 3000mm (standard); can be customized to lengthen |
| Feeding method | Direct delivery or sandwich delivery |
| Max bending radius | R350mm |
| Max bending angle | 190° |
| The number of bent pipes that can be set for each pipe fitting | 16 pieces (PLC type)/33 pieces |
| The number of bend files can be set | 300 |
| Bending speed | MAX 50 degrees/second |
| Tube rotation speed | MAX 100 degrees/second |
| Feeding speed | MAX 500mm/sec |
| Bend angle | ±0.15 degrees |
| Turning tube angle | ±0.1 degrees |
| Feeding length | ±0.1 degrees |
| Rotary tube servo motor | 0.75KW |
| Feeding servo motor | 1.5KW |
| Bending Method | By Hydraulic Cylinder |
| Machine dimensions | ≈ 5400 × 1200 × 1500 mm |
Resources & Downloads:
CNC Pipe Bending Machine DW75CNC-2A-1S Product Introduction :
Equipment Introductions
- Rich experience in pipe bending process and advanced mold design and manufacturing.
- Electronic control system: Using Japanese Mitsubishi servo driver, servo motor, positioning module, CPU, etc., with strong performance and good stability
- Mitsubishi’s ultra-large CPU can accommodate 400 groups of file editors,
- Has the function of automatically detecting errors and faults and displaying them on the screen, allowing the operator to easily troubleshoot obstacles
- The machine is equipped with an automatic oiling system, which can reduce the friction of the bent pipe, increase the life of the mandrel and ensure the quality of the bent pipe.
- Japanese Mitsubishi programmable controller is used for control.
- Electrical control can realize three functions of inching, single action and automatic.
- Adopting integrated passage block structure, the hydraulic system has high reliability.
- Equipped with a mandrel mechanism, it can perform core or coreless bending.
- Equipped with safety limit and emergency stop button to ensure operator safety.
- Various profiles can be bent by changing the mold.
- The clamping and mandrel parts are equipped with separate oil cylinder transmission. When the bending arm rotates, the pipe can achieve high-precision bending and forming under the joint constraints of the above parts and all parts of the mold.
Main Parts
| NO | Name | Brand |
| 1 | Touch screen | Weluntong |
| 2 | PLC | Japan Mitsubishi |
| 3 | Air switch | France Schneider |
| 4 | Contactor | France Schneider |
| 5 | Thermal protection | France Schneider |
| 6 | Servo motor | (Full set) Japan Mitsubishi |
| 7 | Servo driver | (Full set) Japan Mitsubishi |
| 8 | Adapter board | TAIWAN VIGOR |
| 9 | Transformer | Jiangsu Xinhuatong |
| 10 | Switching power supply | TAIWAN MEAN WELL |
| 11 | Sensor | TAIWAN FOTEK or Omron |
| 12 | Double shielded CN1 control line | MR-SSCN |
| 13 | Wire | PANDA |
| 14 | Terminal | TAIWAN TEND |
| 15 | Solenoid valve | Taiwan TEYE |
| 16 | Cylinder seal | TAIWAN DINGZING |
| 17 | Hydraulic oil pump | LIANHUEI Hydraulic |
| 18 | Motor | Jiangsu Hongjia |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.

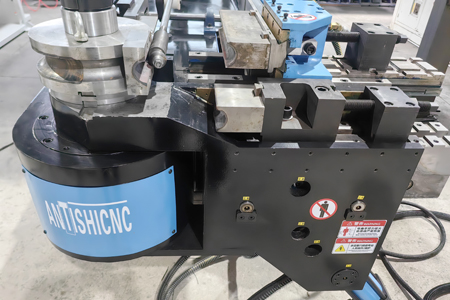

Equipment hardware
| NO | Name | Notes |
| 1 | Body | Laser, welding |
| 2 | Bend arm/machine head | Forging |
| 3 | Press wheel | The pressure wheel shaft is directly pressed on the center line of the gear to ensure bending accuracy |
| 4 | Oil tank | Enclosed design to ensure oil cleanliness |
| 5 | Head seat structure | Separate design of the guide die seat, good wear resistance |
| 6 | Encoder setting | Hidden design, less interference, high precision |
| 7 | Sliding part material | 45# quenching and tempering process, good wear resistance |
