Universal lathe

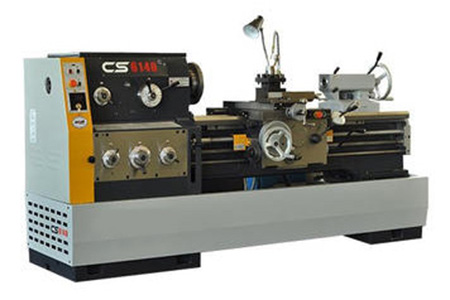

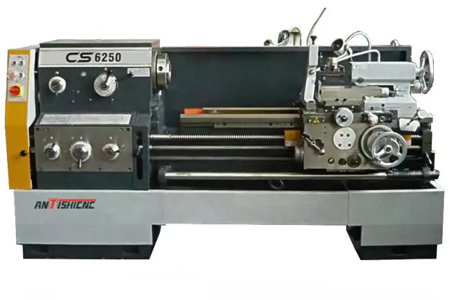

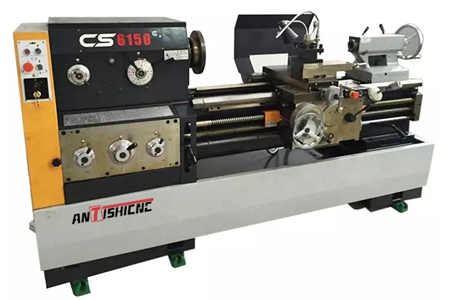

CS61/6250 Series Universal Lathes

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item Unit Parameter
CS6150 CS6250
Capacity Max  swing over bed mm Φ500
Max  swing in gap mm Without gap Φ710
Effective  length in gap mm Without gap 240
Max  swing over slide mm Φ300
Max  workpiece length mm 1000/1500/2000/3000
Machine bed width mm 390
Spindle Spindle aperture diameter mm φ52
Spindle  nose ISO  702/Ⅲ No.6 bayonet  type
Spindle  speed r/min 24  step 9-1600
Spindle  motor kW 7.5
Tailstock Quill  dia./travel mm φ75/150
Taper  of center MT 5
Tool  post Number  of station/

Tool  section

Feed Max. Travel of upper toolpost mm 145
Max. Travel of lower toolpost m/min 320
X-axis  feed mm/r 93  sorts 0.012-2.73
Z-axis feed mm/r 93  sorts 0.028-6.43
Metric  thread mm 48  sorts 0.5-224
Inch  thread t.p.i 48  sorts  72-1/8
Module  thread πmm 42  sorts 0.5-112
DP  thread DP 42  sorts 56-1/4
Others Coolant  pump motor kW 0.06
Machine  length mm 2632/3132/3632/4632
Machine  width mm 975
Machine  height mm 1230
Machine  weight kg 2100/2300/2500/2900

Product Introduction:

1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

2. Threading Inch, Metric, Module and D.P.;

3. Perform drilling, boring and groove broaching;

4. Machine all kinds of flat stocks and those in irregular shapes;

5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

6. Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;

7. There are hand brake and foot brake for users to choose;

8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

Standard Equipment
3-jaw chuck and adapter
4-jaw chuck and adapter(For CS6250)
4-station conventional tool post
Drive plate
Faceplate(For CS6250)
Steady rest
Follow rest
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Hook spanner
Oil gun

Optional Equipment
Live Center
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post(American /Italy/European type)
Chuck guard
Tool-post guard
Taper turning attachment
Digital readout(2/3 AXIS)
Siemens electrical appliances
Quick release
Screw protection
