Universal lathe

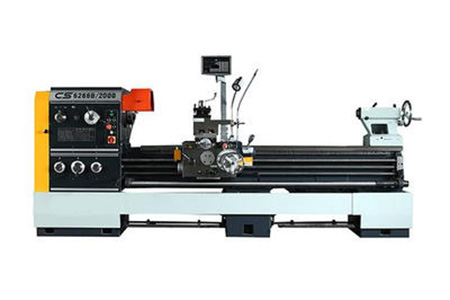

CS61/6266B Gap-bed Lathe

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Item Unit Parameter
CS6166B CS6266B
Capacity Max swing over bed mm Φ660
Max swing in gap mm Without gap Φ870
Effective length in gap mm Without gap 240
Max swing over slide mm Φ420
Max workpiece length mm 1000/1500/2000/3000
Machine bed width mm 390
Spindle Spindle aperture diameter mm Φ82
Spindle nose ISO 702/Ⅱ No.8 cam-lock type
Spindle speed r/min 24 step 9-1600
Spindle motor kW 7.5
Tailstock Quill dia./travel mm φ75/150
Taper of center MT 5
Tool post Number of station/Tool  section 4/25X25
Feed Max. Travel of upper toolpost mm 145
Max. Travel of lower toolpost m/min 320
X-axis feed mm/r 93 sorts 0.012-2.73
Z-axis feed Z-axis feed mm/r 93 sorts 0.028-6.43
Metric thread mm 48 sorts 0.5-224
Inch thread t.p.i 48 sorts 72-1/8
Module thread πmm 42 sorts 0.5-112
DP thread DP 42 sorts 56-1/4
Others Coolant pump motor kW 0.06
Machine length mm 2632/3132/3632/4632
Machine width mm 1050
Machine height mm 1350
Machine weight kg 2400/2600/2800/3000

Product Introduction:

1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

2. Threading Inch, Metric, Module and D.P.;

3. Perform drilling, boring and groove broaching;

4. Machine all kinds of flat stocks and those in irregular shapes;

5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

6. Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;

7. There are hand brake and foot brake for users to choose;

8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

Standard Equipment
3-jaw chuck and adapter
4-jaw chuck and adapter(For CS6266B)
4-station conventional tool post
Drive plate
Faceplate(For CS6266B)
Steady rest
Follow rest
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Hook spanner
Oil gun

Optional Equipment
Live Center
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post(American /Italy/European type)
Chuck guard
Tool-post guard
Taper turning attachment
Digital readout(2/3 AXIS)
Siemens electrical appliances
Quick release
Screw protection
