Universal lathe

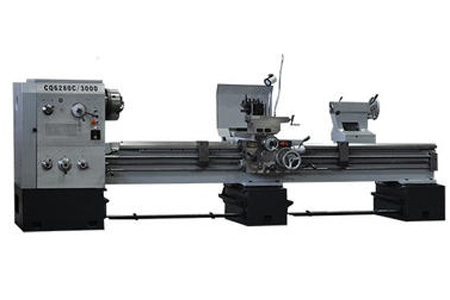

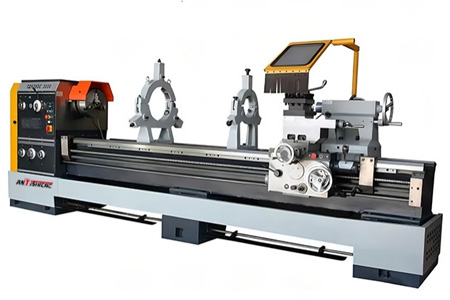

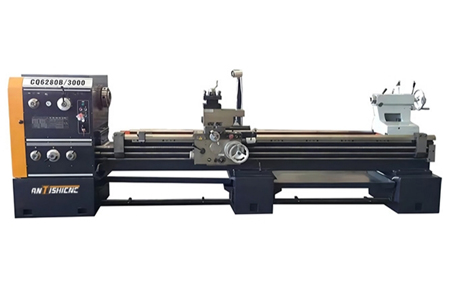

CQ6280C series universal lathe

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Item Unit Parameter
CQ6280C
Capacity Max  swing over bed mm Φ800
Max  swing in gap mm Φ1000
Effective  length in gap mm 240
Max  swing over slide mm Φ560
Max  workpiece length mm 2000/3000
Spindle Spindle aperture diameter mm Φ105
Spindle  nose ISO  702/Ⅱ No.8 cam-lock type
Spindle  speed r/min 12  step 30-1400
Spindle  motor kW 7.5
Tailstock Quill  dia./travel mm Φ90/150
Taper  of center MT 5
Tool  post Number  of station/

Tool  section

4/25X25
Feed Max  X-axis travel mm 145
Max  Z-axis travel m/min 320
X-axis  feed mm/r 65  sorts 0.063-2.52
Z-axis  feed Z-axis feed mm/r 65  sorts 0.027-1.07
Metric  thread mm 22  sorts 1-14
Inch  thread t.p.i 25  sorts 28-2
Module  thread πmm 18  sorts 0.5-7
DP  thread t.p.i.  π 24  sorts 56-4
Others Coolant  pump motor kW 0.06
Machine  length mm 3365/4365
Machine  width mm 1340
Machine  height mm 1490
Machine  weight kg 3300/3700

Product Introduction:

1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;

2. Threading Inch, Metric, Module and D.P.;

3. Perform drilling, boring and groove broaching;

4. Machine all kinds of flat stocks and those in irregular shapes;

5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;

6. Both Inch and Metric system are used on these series lathes, it’s easy for people from different measuring systems countries;

7. There are hand brake and foot brake for users to choose;

8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).

Standard Equipment
3-jaw chuck and adapter
4-jaw chuck and adapter(For CQ6280C)
4-station conventional tool post
Drive plate
Faceplate(For CQ6280C)
Steady rest
Follow rest
The Full-longitudinal chip guard (Movable type for 3000mm)
LED work lamp
Dead center and center sleeve
Spanner
Hook spanner
Oil gun

Optional Equipment
Live Center
Thread chasing dial
Mechanical feed stop
Single set feed stop
Quick change tool post(American /Italy/European type)
Chuck guard
Tool-post guard
Taper turning attachment
Digital readout(2/3 AXIS)
Siemens electrical appliances
Quick release
Screw protection
