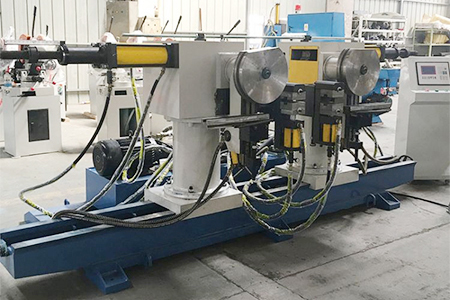

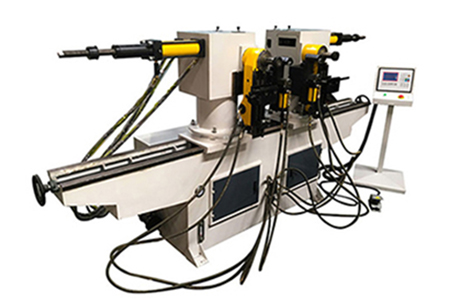

Double-Head Hydraulic Pipe Bending Machine SW50NC
Max. bending radius：R250mm
Mini. bending radius：R≥1.5Dmm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Main specifications | Unit | SW50NC | Remark |
| Max. bending diameter x Wall thickness | mm | Φ50×2 | 1. The minimum bending radius is based on the pipe diameter
2. The maximum bending radius can be determined according to customer requirements |
| Max. bending radius | mm | R250 | |
| Mini. bending radius | mm | R≥1.5D | |
| Max. bending Angle | Degree | 190 | |
| Double bend center range | mm | 300-2000 | |
| Control system | / | Microcomputer control | |
| Bending accuracy | +/-Deg | 0.1 | |
| Motor power | kw | 7.5 | |
| Max system pressure | Mpa | 14 | |
| Hydraulic system control | Solenoid valve | ||
| Tank volume | L | 120 | |
| Machine dimensions | mm | 3000×1650×1400 | |
| Machine weight | Kg | 2000 |
Features
1. According to the different structure of the base, it can be divided into Angle type and non-angle type.
2. Microcomputer control, convenient operation, easy maintenance.
3. Full cycle and half cycle operation can be selected, suitable for mass production of symmetrical products on both sides.

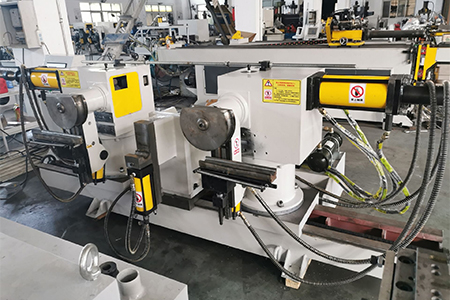

4. Fast adjustment design of the left and right head, strong locking force, the center distance between the two axes is not easy to deflect when bending.
5. The bending Angle adjustment control precision is high, and conforms to high safety standards.
6. It can be operated one or more than two at a time according to the outside diameter of different materials.
Main Parts for the machine
| Specifications | Supplier |
| Machine frame | China |
| Major electrical appliance | Taiwan Taian |
| Foot switch | China |
| Solenoid valve | Taiwan 7OCEAN |
| Relief valve | Taiwan 7OCEAN |
| Electric motor | China |
| Transformer | China |

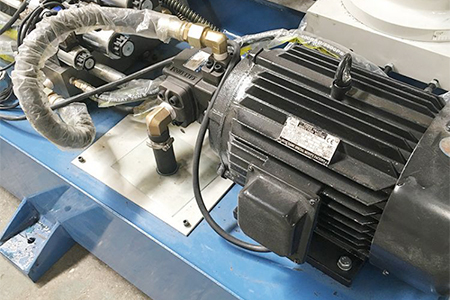

| Oil pump motor | China |
| Oil Hydraulic pump | China |
| Power switch | Taiwan MEAN WELL |
| Button | China |
| Bearings | China |
| The mold | China |
Remark：The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
