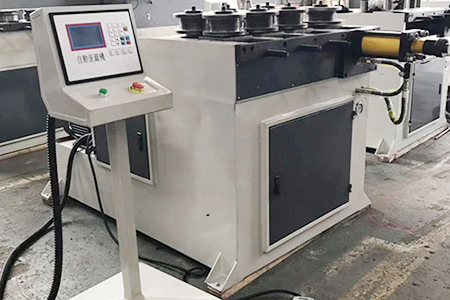

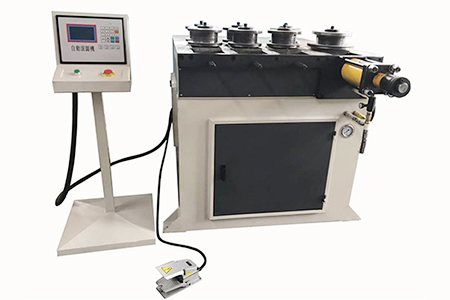

Rounding Machine GY60NC-7

Max. pipe bending capacity: Φ60mm x 2mm

Mini. elbow radius: R≥7.5D

No installation required

Simple operation

Support video teaching

1 Year for machinery warranty

On Stock

Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)

Technical Parameter :

Main specifications GY60NC-7 Remark
Max. pipe bending capacity Φ60mm x 2mm Specifications can be according to customer requirements
Mini. elbow radius R≥7.5D
Bending speed adjustable
The mold diameter 150mm
Total power 5.5kw
Machine size 1600mm x 1000mm x1000mm
Machine weight 1100kg

Features

1.Full mechanical transmission, compact structure, high reliability.

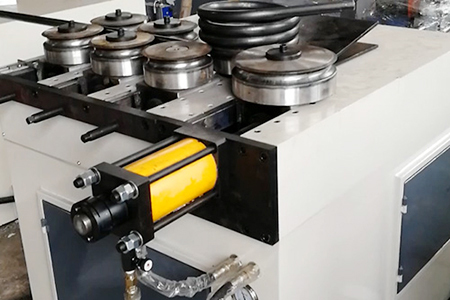

2.The equipment is equipped with three, seven, nine wheel drive, not easy to slip, thin wall material can also bend.

3.Two sides of the wheel asymmetrical distribution, reduce the straight line segment.

4.Both sides of the side wheel can feed the work-piece.

5.Foot switch with emergency stop function, easy to operate.

6.The machine transmission balance only need to adjust the pressingtoobtain different curvature of the circular, arc or spiral shape.

7.Change the mold groove, can process all kinds of metal profiles, such as Angle steel, flat steel, round pipe and other special-shaped section profiles.

8.It can bend large radius profiles to avoid the disadvantages of making large bending die. It is the necessary supplement that single head and double head series bending machine can not reach.

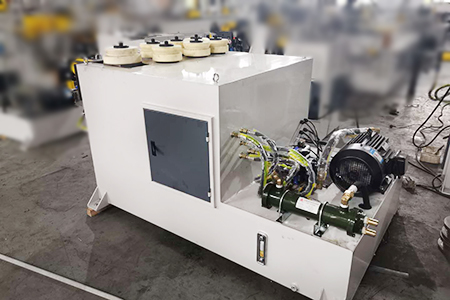

Main Parts for the machine

Specifications Supplier
Machine frame China
Major electrical appliance Taiwan TAIAN
Hydraulic valve Taiwan 7OCEAN
Overflow valve Taiwan 7OCEAN
Electric motor China
High pressure tubing China
Oil pump China
Emergency stop switch China
Switching power supply Taiwan MEAN WELL
Bearings China
The mold China

Remark:The accessories in the configuration list allow the manufacturer to change the accessory brand to a higher level according to the material supply. Users can purchase other brand accessories according to their needs.
