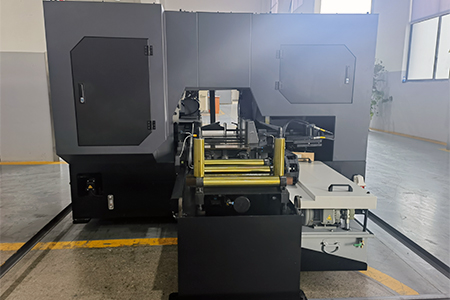

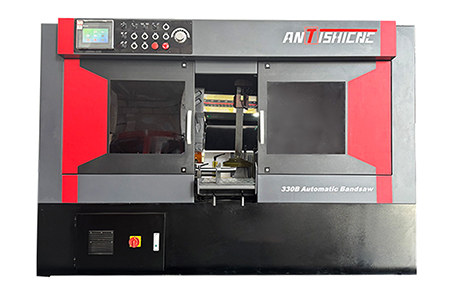

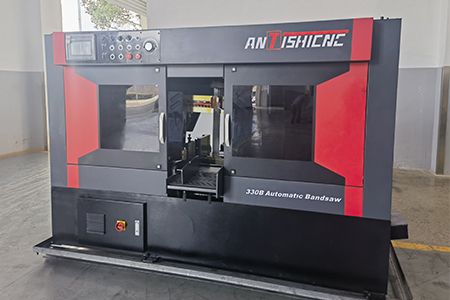

Fully Automatic Dual Column Metal Band Saw Machine With Protective Cover
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | 330B With Protective Cover |
| Cutting capacity 0° (flat) (length x width) | 330*330 mm |
| Cutting capacity 0° (round) | 330 mm |
| Cutting capacity 0° (square) | 330*330 mm |
| Cutting speed infinitely variable | 20~80 m/min |
| Stop length(single stroke) | 500 mm |
| Accuracy of the feeding(single feeding) | ±0.2 mm |
| Saw blade size | 34*1.1*4115 mm |
| Saw blade tension type | Hydrualic |
| Workbench height | 685 mm |
| Motor rating main drive | 4 kw |
| Motor rating of hydraulic feed | 0.75 kw |
| Overall dimensions (length x width x height) | 2350*2220*1500 mm |
| Weight(NET WEIGHT) | 2054 kgs |
Product Details
The ANTISHI company GZ Series PLC control fully automatic metal cutting bandsaw machine is a robust, modern-to-use workshop saw for precise sawing of medium diameters. All operating switches are clearly grouped on a touchscreen and control panel. The machine aims to the fully-automatic control as it’s main feature. Using PLC touch screen panel, you can regulate the saw frame feed, steplessly adjust the saw blade speed and machine the work-piece hydraulically. The robust automatic material feed does not need any electronics or programming and still offers high repeat and dimensional accuracy.
GZ series band saws, which are designed for straight cuts in larger work-pieces made of steel, cast iron and other metals. The rigid dual column frame is extremely stable and the main drive is via low-maintenance V-belts. The work-piece clamping and the stroke of the saw frame are driven hydraulically.
Features
Rigid dual column frame with column guide for superior stability
Control panel with touchscreen
Hydraulic vise work-piece clamping
Automatic saw blade overload control
Support table with integrated feed rollers
Material feed system with work-piece guide rollers
Fast approaching bar detection of the work-piece height
Standard Equipment of the saw machine
1.Blade cleaning brush.
2.Working light.
3.Roller table 1pcs (about 60cm )
4.One piece of bi-metal saw blade.
5.One set of tools with tool box
6.NC control
7.Bunddle cutting device
8.Hydraulic blade tension
9.Inverter control saw ble line speed
10.Automatic chip conveyor
Optional Parts and Optional Equipment
| NO. | Spare parts Description | Specification | Function |
| 1 | Work-piece Rack | 2 meter | Take the load of materials |
| 2 | Bi-metallic band saw blade | 34*1.1*4115 mm | Consumables |
| 3 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
