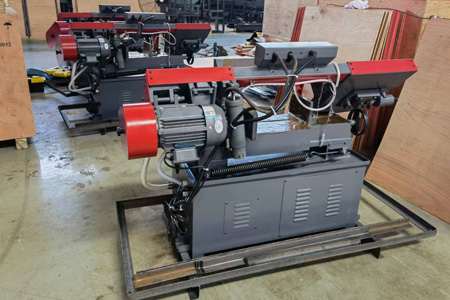

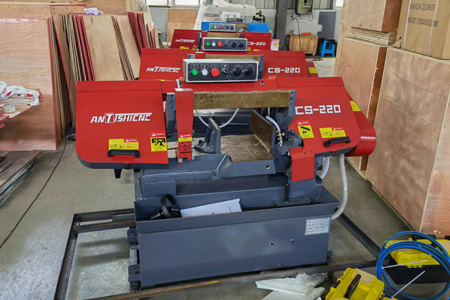

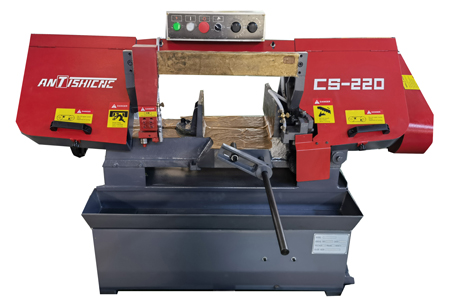

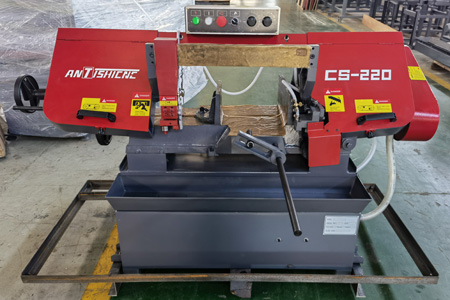

CS Series Scissor type Metal Cutting Saw CS-220
Round material: Ø220 mm
Square : 400W×100H mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specification| Model | CS-220 | |
| Max.cutting capacity | Round | 220 mm |
| Quadrate | 400W×100H mm | |
| Saw Blade | Speed | 21/34/43/60 m/min |
| Size | 27×0.9×3045 mm | |
| Carbide and bearing blade guides | Yes | |
| Wire brush & flood coolant | Yes | |
| Tension | Manual | |
| Motor output Power | Blade | 1.5kw |
| Coolant | 0.06kw | |
| Work feeding | – | Manual |
| Work Vise | – | Manual |
| Machine weight | kg | 416kg |
| Overall dimension | mm | 1800×800×1150 |
Product Details
CS series metal band saw is mainly used for sawing of small and medium-sized bars, tubes and plates, and can be adapted to sawing of various ferrous materials. It has the characteristics of high cutting efficiency, energy saving, narrow kerf, energy saving and material saving, and simple operation.
The machine tool adopts scissor structure to ensure the reliability, stability and advancement of the structure, and the functions of each part have margins, and at the same time, it also ensures high-quality sawing accuracy.
Standard Equipment
Blade cleaning brush.
Length stopper
One piece of bi-metal saw blade.
One unit tools
Operating tools
Operator manual
Optional Equipment
| Machine Type | Model | Remark |
| BAHCO Band Saw Blade | 3999- 27 | HSS steel
Band with M51 teeth |
| 3999-34 | ||
| 3999-41 | ||
| 3999-54 | ||
| 3999-67 | ||
| 3999-80 | ||
| Mondragon Band Saw Blade | 27 | HSS steel
Band with M42 teeth |
| 34 | ||
| 41 | ||
| Roller rack | ||
