Technical Parameter :
|Technical Specifications| Model||CH-1300|
|Cutting capacity 0° (flat) (length x width)||1300*1300 mm|
|Cutting capacity 0° (round)||1300 mm|
|Cutting capacity 0° (square)||1300*1300 mm|
|Cutting speed infinitely variable||15~60 m/min(inverter)|
|Stop length(single stroke)||N/A|
|Accuracy of the feeding(single feeding)||±0.2 mm|
|Saw blade size||67×1.6×11180 mm|
|Saw blade tension type||Hydraulic|
|Workbench height||520 mm|
|Motor rating main drive||15 kw|
|Motor rating of hydraulic feed||3.75 kw|
|Overall dimensions (length x width x height)||5050x2250x3380 mm|
|Weight(NET WEIGHT)||12100 kg|

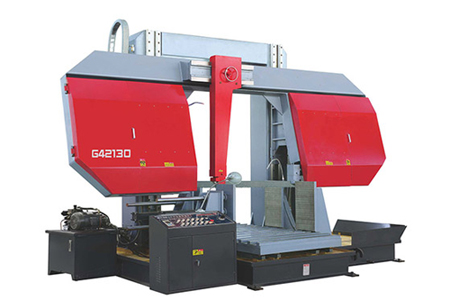

The machine tool adopts a gantry structure to ensure the reliability, stability and advancement of the structure. The functions of each part have sufficient margins, and at the same time, it also ensures high-quality sawing accuracy.
It is mainly used for sawing various medium and large sizes of ferrous and non-ferrous metal bars and plates. It has the advantages of high cutting efficiency, energy saving, narrow saw mouth, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Hydraulically controlled sawing feed and vise clamping;
High-precision linear guide rail guide, high sawing precision;
Gantry type structure, good rigidity, reliable and stable structure;
Double oil cylinder control, stable feeding;
Motorized feeding roller table and receiving roller table
Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.
The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.
The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance
Blade cleaning brush.
Saw frame height selector gauge
One piece of bi-metal saw blade.
One set of tools with tool box
Roller table 2M long
Hydraulic blade tension
Inverter blade speed
|NO.||Spare parts Description||Function|
|1||Spiral Chip Conveyor||Remove the cutting chips|
|2||2 meters detachable rack||Feed|
|3||Tool setting light||Lighting use|
|4||Pressure reducing valve||Adjustable vise pressure (suitable for cutting thin-walled tubes)|
