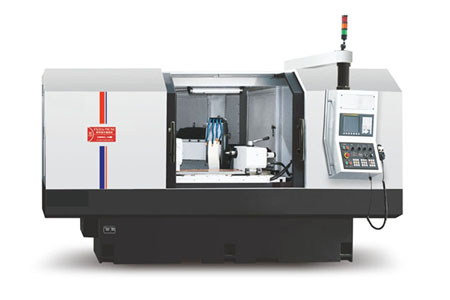

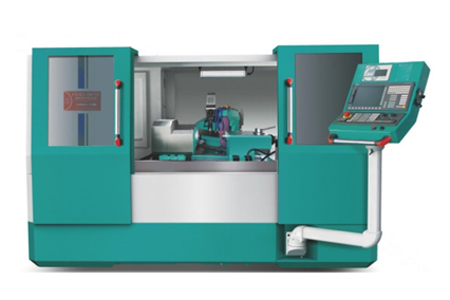

FX32A-35CNC High Precision Oblique-feed CNC Cylindrical Grinder(full cover)
Max rotating dia. : 320mm
Center distance : 500 mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications | Unit | FX32A-35CNC | |
| Processing Capability | Worktable maximum rotating diameter | mm | 320 |
| The longest distance between two top centers | mm | 500 | |
| Effective grinding length | mm | 350 | |
| Maximum grinding diameter | mm | 320 | |
| Maximum load between two top centers | Kg | 150 | |
| Grinding wheel size: diameter × width × aperture | mm | 510×50×203.2 | |
| Wheel speed | rpm | 1670 | |
| Maximum line speed | m/s | 45 | |
| Control System | CNC Controller (secondary development) | SIEMENS | |
| Wheel head | Feed angle | Deg | 60 |
| X axis feed speed | mm/min | 6000 | |
| X axis feed stroke | mm | 300 | |
| X axis minimum setting unit | mm | 0.001 | |
| Head-stock | Spindle speed | rpm | 0-500 |
| Spindle form | Synchrony/Centering | ||
| Centre | MT 5 | ||
| Tail-stock | Automatic telescopic distance | mm | 40 |
| Centre | MT 4 | ||
| Workbench | Z axis fast moving speed | mm/min | 8000 |
| Z axis minimum setting unit | mm | 0.001 | |
| Maximum travel stroke | mm | 550 | |
| Rotation angle | Deg | +7/-3 | |
| Motor | Wheel spindle motor | Kw | 7.5 |
| X axis feed motor | Kw | 3.5 | |
| Z axis feed motor | Kw | 3.5 | |
| Headstock spindle motor | Kw | 1.5 | |
| Cooling water motor | Kw | 0.18 | |
| Tail-stock oil pump motor | Kw | 0.75 | |
| Lubricant pump | Kw | 0.1 | |
| Standard accuracy | Roundness | mm | 0.0015 |
| Cylindricity | mm | 0.003 | |
| Straightness | mm | 0.003 | |
| X axis positioning accuracy | mm | 0.003 | |
| Z axis positioning accuracy | mm | 0.003 | |
| X axis repeat positioning accuracy | mm | 0.002 | |
| Z axis repeat positioning accuracy | mm | 0.002 | |
| Roughness | mm | ≤ Ra 0.25 | |
| Others | Machine net weight (full cover type) | Kg | 5000 |
| Gross weight | Kg | 5300 | |
| Packing size (length×width×height) | mm | 4000×3500×2500 | |

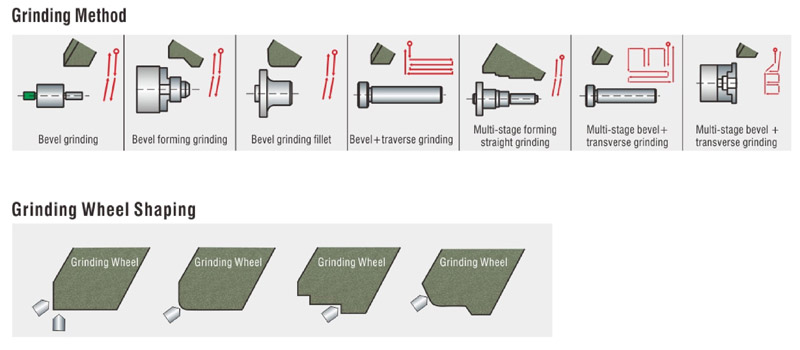

● The grinding wheel spindle has high rigidity, high precision, high service life and low vibration,and low friction.
● The self-aligning function, the wheel spindle is not affected by the belt tension and is biased.
● The spindle has a centering and simultaneous compound function, and the user can perform rapid conversion in the core machining and the chuck clamping process.
● The Z-axis consists of an AC servo motor, a high-precision bead screw, and an automatic forced lubrication system.
● High repeatability, long track service life, high rigidity and smooth reciprocating motion
● Configurable surface measurement, outer diameter thickness measurement, grinding wheel anti-collision device
● The grinding wheel spindle has high rigidity, high precision, high service life and low vibration,and low friction.
● The self-aligning function, the wheel spindle is not affected by the belt tension and is biased.
● The spindle has a centering and simultaneous compound function, and the user can perform rapid conversion in the core machining and the chuck clamping process.
● The Z-axis consists of an AC servo motor, a high-precision bead screw, and an automatic forced lubrication system.
● High repeatability, long track service life, high rigidity and smooth reciprocating motion
● Configurable surface measurement, outer diameter thickness measurement, grinding wheel anti-collision device

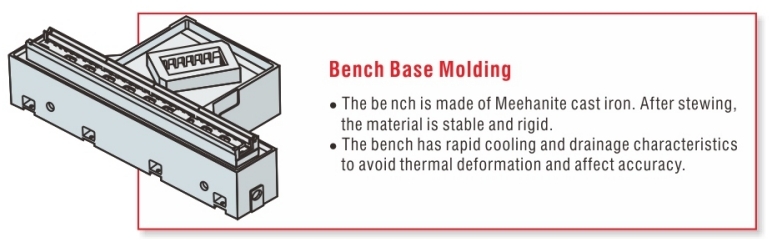

● The be nch is made of Meehanite cast iron. After stewing, the material is stable and rigid.
● The bench has rapid cooling and drainage characteristics to avoid thermal deformation and affect accuracy.

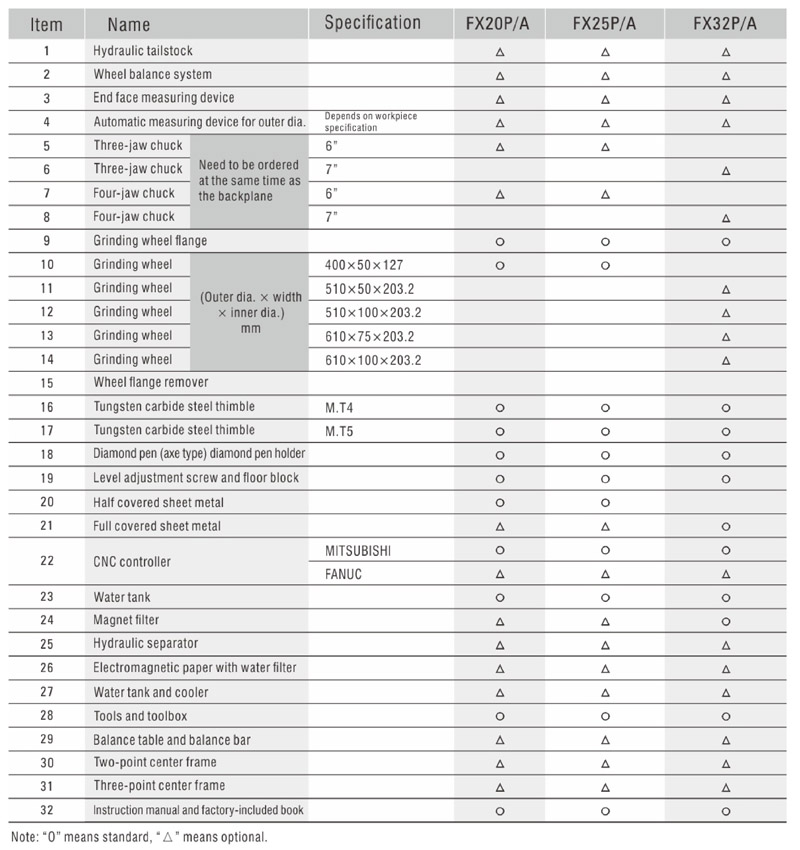

Standard Equipment & Optional Equipment
