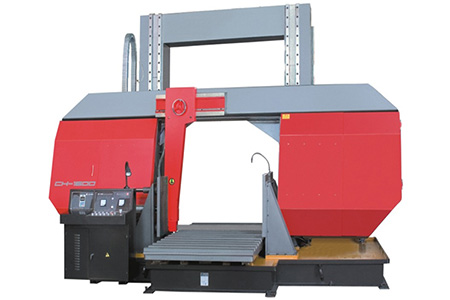

Gantry Column Structure Horizontal Straight Cutting Bandsaws CH-1200
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical Specifications| Model | CH-1200 |
| Cutting capacity 0° (flat) (length x width) | 1200*1200 mm |
| Cutting capacity 0° (round) | 1200 mm |
| Cutting capacity 0° (square) | 1200*1200 mm |
| Cutting speed infinitely variable | 15~60 m/min(inverter) |
| Stop length(single stroke) | N/A |
| Accuracy of the feeding(single feeding) | ±0.2 mm |
| Saw blade size | 67×1.6×10800 mm |
| Saw blade tension type | Hydraulic |
| Workbench height | 520 mm |
| Motor rating main drive | 15 kw |
| Motor rating of hydraulic feed | 3.75kw |
| Overall dimensions (length x width x height) | 4835x2180x3340 mm |
| Weight(NET WEIGHT) | 11500 kg |
Product Details
The machine tool adopts a gantry structure to ensure the reliability, stability and advancement of the structure. The functions of each part have sufficient margins, and at the same time, it also ensures high-quality sawing accuracy.
It is mainly used for sawing various medium and large sizes of ferrous and non-ferrous metal bars and plates. It has the advantages of high cutting efficiency, energy saving, narrow saw mouth, material saving, energy saving, high sawing precision, convenient operation and high production efficiency.
Product Features
Hydraulically controlled sawing feed and vise clamping;
High-precision linear guide rail guide, high sawing precision;
Gantry type structure, good rigidity, reliable and stable structure;
Double oil cylinder control, stable feeding;
Motorized feeding roller table and receiving roller table
Hydraulic tension of saw belt, frequency conversion control of cutting speed, optional chip cleaning device.
The main drive reducer adopts bevel helical gear reducer, with smooth transmission without impact, high transmission efficiency and long service life.
The hydraulic system adopts an independent hydraulic station, which is convenient for maintenance
Standard Equipment
Blade cleaning brush.
Working light
Saw frame height selector gauge
One piece of bi-metal saw blade.
One set of tools with tool box
Roller table 2M long
Laser projector
Hydraulic blade tension
Inverter blade speed
Sensor for jamming, slipping and breaking of the band saw blade 1 set
Optional Equipment
| NO. | Spare parts Description | Function |
| 1 | Spiral Chip Conveyor | Remove the cutting chips |
| 2 | 2 meters detachable rack | Feed |
| 3 | Tool setting light | Lighting use |
| 4 | Pressure reducing valve | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
