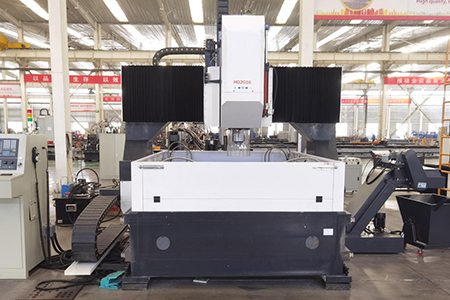

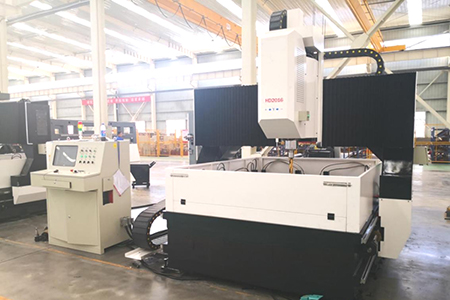

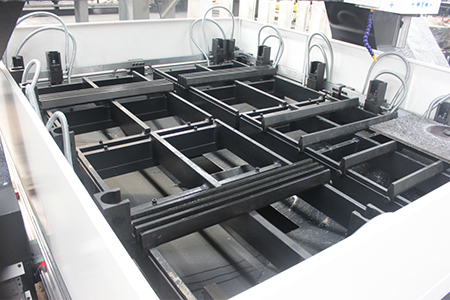

HD3016S High Speed CNC Drilling Machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Parameter name | Item | Parameter value |
| Max. effective processing range | Length X Width | 3000X1600mm |
| Max. thickness | 100mm | |
| Vertical pillow power spindle | Qty. | 1 |
| Spindle taper | BT50 | |
| Max. drilling dia. | Φ50mm | |
| Drilling depth | ≤100 | |
| Spindle speed | 30—3000r/min | |
| Spindle motor power | 22kW | |
| Distance between the lower end of the spindle and the working table | 200-500mm | |
| Gantry longitudinal movement
（X axis） |
Max. stroke | 3000mm |
| X axis movement speed | 0-10m/min | |
| X-axis servo motor power | 2.0kW | |
| Power head transverse movement
（Y axis） |
Max. stroke of power head | 1600mm |
| Y axis movement speed | 0-10m/min | |
| Y-axis servo motor power | 1.5kW | |
| Vertical sliding pillow feed motion
（Z axis） |
Z axis stroke | 300mm |
| Z axis feed speed | 0-5m/min | |
| Z-axis servo motor power | 2.0kW | |
| Positioning accuracy | X axis | 0.1mm/full length |
| Y axis | 0.1mm/full length | |
| Re-positioning accuracy | X axis | 0.05mm |
| Y axis | 0.05mm | |
| Hydraulic system | Hydraulic pump pressure | 6MPa |
| Hydraulic pump motor power | 2.2kW | |
| Pneumatic system | Compressed air supply pressure | ≥0.5MPa |
| Chip removal and cooling | Chip remover type | Chain plate type |
| Chip remover Qty. | 1 | |
| Chip removal speed | 1m/min | |
| Chip remover motor power | 0.43kW | |
| Internal cooling + external cooling | Mist spray | |
| Automatic lubrication system | Lubricating pressure | 2MPa |
| Lubricating point oil injection | 0.1mL | |
| Lubrication interval | 6-10min | |
| Electrical system | Numerical control system | SIEMENS PLC |
| CNC axis | 3 | |
| Total motor power | Approx. 30kW | |
| Overall dimensions | L x W x H | Approx. 5.5X3.9X3.2m |
Applicable Industry:
Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.
Product feature：
1. Heavy-load linear roller guide pairs are equipped on two sides of the machine bed respectively. The longitudinal movement of the gantry’s two sides is driven synchronously via AC servo motor and precise ball screw pair of big pitch.
2. Two movable slides are equipped on the cross beam of gantry. The sliders are guided by two linear roller guide pairs and driven by AC servo motor and precise ball screw pair of big pitch respectively.
3. The slides on the cross beam are equipped with vertical CNC feeding ram-type drilling spindle, which adopts special conversion motor with heavy load for spindle. The motor drives the spindle via synchronous belt. The drilling spindle adopts Taiwan precision spindle (inner-cooling) with disk spring automatic broach mechanism, hydraulic cylinder loosing cutter, very convenient to change shank.
4. The machine is equipped with hydraulic system to finish the hydraulic balance of vertical ram and hydraulic cutter loosing of spindle.
5. It adopts SIEMENS CNC system, equipped with RS232 interface and LCD screen. The automatic programming provided can not only generate processing programs automatically, but also preview hole position before drilling.
6.It is equipped with chain-plate type automatic chip-conveyor and chip collection trolley. The cooling system is equipped with paper filer, high-pressure inner-cooling pump and low-pressure outer-cooling pump, which are used for inner-cooling or outer-cooling of cutter.
