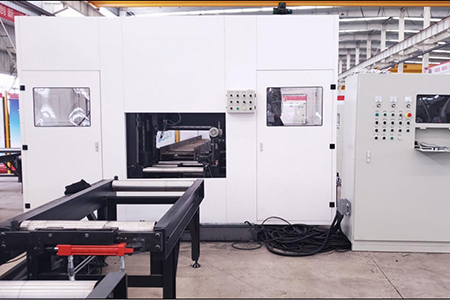

SWD700 PLC Control 3D Beams Drilling Machine
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | SWD700 |
| Max.H beams size (web width × flange height) (mm) | 700×400 |
| Max. drilling dia. (mm) | Φ40 |
| Drilling head feeding speed (mm/min) | 20~300 |
| Qty. of spindle | One spindle on each side (top,left,right) Total: 3 spindles |
| Rotation speed (step-less speed adjustment) (rpm) | 120~560 |
| Feeding movement speed (mm/min) | 20~300 |
| Max. feeding stroke (mm) | 300 |
| Power of each spindle (kW) | 4 |
| Qty. of CNC axis | 4 |
| Stroke of left/right spindles (Above vertical base-level) (mm) | 20~420 |
| Stroke of top spindle (Beyond horizontal base-level) (mm) | 30~630 |
| Total power (kW) | 27 |
| Feeding type | NC carriage feeding |
| Overall dimensions (L×W×H) (m) | About 3.6×1.45×2.45 |
| Total weight (Kg) | About 4500 |
Applicable Industry:
This machine is special equipment used for drilling H beams, channel steel of steel structure, bridge, three dimensional garage and petrol platform.
Product Feature:
1. Equipped with three drilling units, three drilling units can drill holes simultaneously and adopt self-controlled stroke drilling head.
2. No need to set thickness of work-piece and length of drill bits, it will do fact-feeding or feeding automatically by sensor signal, and with high efficiency.

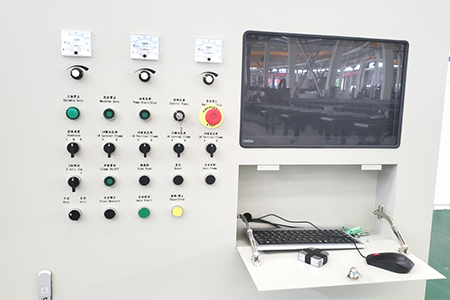

3. PLC systems, programming based on WINDOWS, fast and convenient programming, and visual previewing.

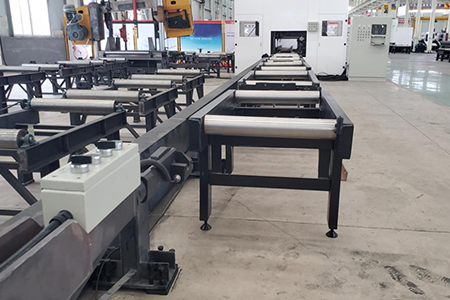

4. This machine equipped with automatic feeding carriage, can feed the work-piece automatically.
5. Drilling units equip with famous brand spindle motor.
6. The key mechanical, hydraulic and electric parts are all famous brands.
