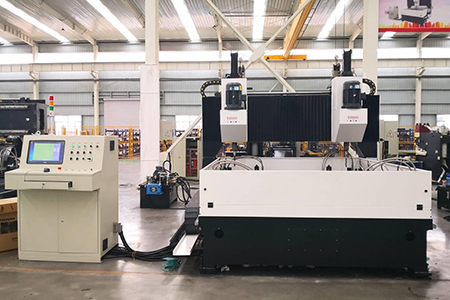

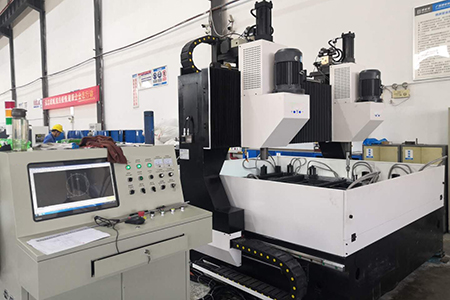

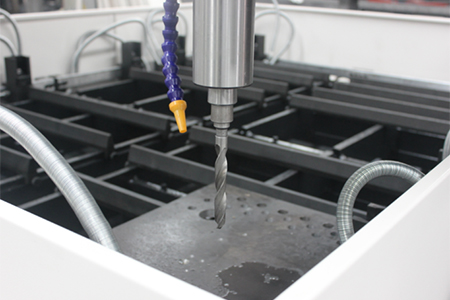

D2020-2 CNC Drilling Machine for Steel Plate
Max size : 2000×2000mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | D2020-2 |
| Machine type | Gantry movable single spindle CNC drilling machine |
| Max work piece size (L×W) | 2000×2000mm |
| Thickness of work piece | 100m
If work piece is small size, it can be overlapped and processed at the same time. |
| Height from table top to ground | 800mm |
| Drill unit type | Hydraulic feeding |
| Clamp type | Hydraulic clamp with 12 clamps |
| Drill head quantity | 2 (Morse 4#) |
| Max drill diameter | Φ50mm |
| Power of main motor | 2 x 5.5 kW |
| Spindle speed | 120～560r/min (frequency control) |
| Spindle vertical stoke (Z axis) | 180mm |
| Drive mode of gantry longitudinal (X axis) | Guided by linear rolling guide; driven by AC servo motor and ball screw pairs. |
| Servo motor power of X axis | 2X1. 3 kW |
| Power head lateral driving type (Y axis) | Guided by linear rolling guide; driven by AC servo motor and ball screw pairs. |
| Servo motor power of Y axis | 2X1. 5 kW |
| Power head lateral driving type (Z axis) | Hydraulic feed. The feed is step-lessly variable (via the valve) and the speed is adjustable. |
| Motor power of chip cleaner | 0.42 kW |
| Motor power of cooling system | 0.25 kW |
| Motor power of Hydraulic station | 2.2 kW |
| Clamping type | Attach Morse 4# quick chuck and 3#, 2# reducing sleeve |
| Electric control type | Germany SIEMENS PLC smart 200 |
| CNC axis quantity | 4 |
| With function of CAD/CAM automatic generation | |
| With function of hole site memory (memory hole site if power off suddenly) and drill pause | |
| Total power | ≈24 kW |
| Total weight | About 7500 |
| Overall dimension | 5.5×3.01×2.85 m |
Applicable Industry:
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
Product Feature:
1.Machine is controlled by PLC & servo motor, ensure precision positioning .
2.The machine have 4 work area with individual reference, work-pieces can be clamped by hydraulic clamps at any area for drilling.
3.Machine equips with computer for software, it can use Auto CAD drawing directly, it also can process NC file which generated by TEKLA.
4.Scrap cleaner can collect all iron scraps and cutting liquid which is recycling.
5.The key mechanical, hydraulic and electric parts are all famous brands.
6.Optimized integration design for complete machine, no foundation requirements.
