CNC Drilling Machine

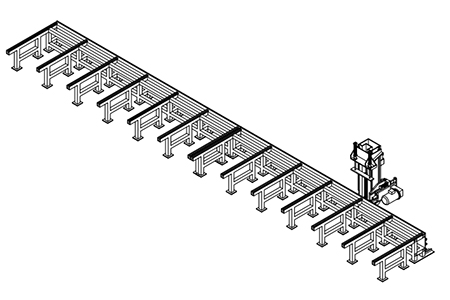

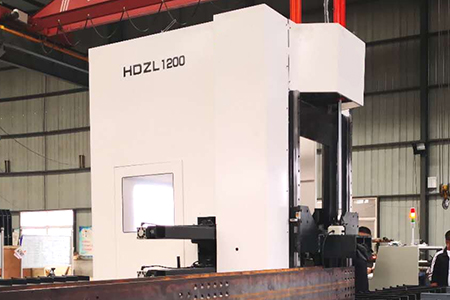

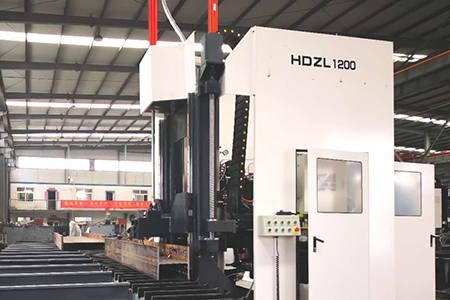

HDZL Series Single Spindle High Speed CNC Beams Drilling Machine

Warranty : 1 Year for machinery warranty

Availability : On Stock

WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email :
(your request will be responsed within 1 hour.)

Technical Parameter :

Model HDZL600 HDZL1200 HDZL600A HDZL1200A
The process work=piece size  (mm) 600×600 1200×600 600×600 1200×600
Max. length of work piece (m) 14 ( by customer’s request)
Max. drilling thickness (mm) 100
Taper hole of spindle BT40/BT50
Max. drilling diameter (mm) 40(BT40)/50(BT50)
Motor power of spindle (kW) 15(BT40)/22(BT50)
Drilling speed (rpm) 30-3000
Feeding mode of spindle (mm/min) 0-4000
Max. feeding stroke (mm) 300
Quantity of axis 3
X axis servo motor (kW) 5
X axis feeding speed (m/min) 40
X axis drive mode Adopt linear guide + rack drive
X1 axis servo motor (kW) —- —- 2 2
X1 axis feeding speed (m/min) —- —- 8 8
Y axis servo motor (kW) 3.5
Y axis feeding speed (m/min) 8
Y axis drive mode Adopt linear guide+ball screw drive
Z axis servo motor (kW) 2
Z axis feeding speed (m/min) 8
Z axis drive mode Adopt linear guide+ball screw drive
Type of ATC (Automatic tool changer) Inline style
Quantity of tooling (pics) 4 6 4 6
Overall size (m) About 18.8 x 4.21 x 3.6 About 18.8x 4.21 x 4.2 About 18.8 x 4.21 x 3.6 About 18.8 x 4.21 x 4.2
Weight (Kg) About 18000 About 24000 About 19000 About 25000

Applicable industry:

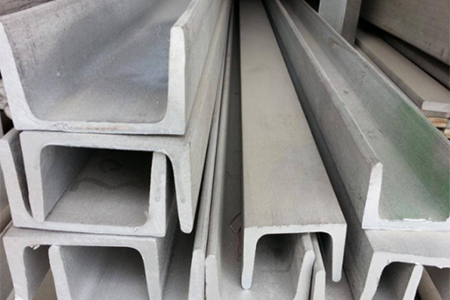

Used for the drilling processing of H beam, box beam, channel steel, rails, angles of steel structure, bridge, three dimensional garage and petrol platform.

Product feature:
1.CNC SIEMENS systems, LCD screen display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
2. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.
3. Equipped with automatic cooling system, lubrication system.
4. Double linear guides’ feeding, precision much higher and more stable.
