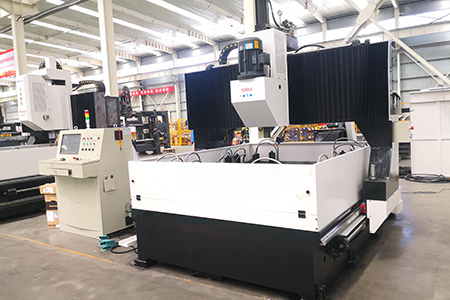

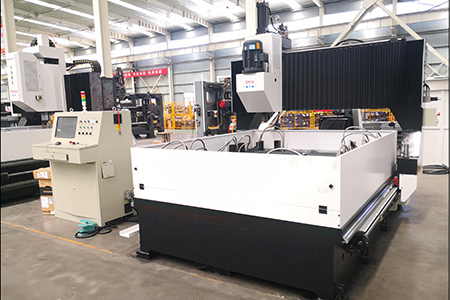

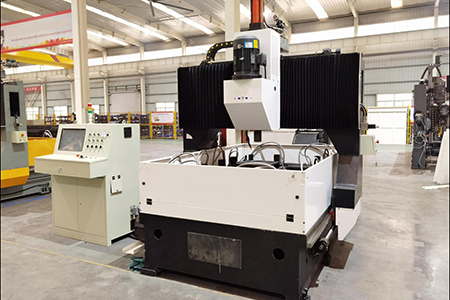

D Series CNC Drilling Machine For Plates
Max. size : 3000×1600 mm
Max. thickness : 100mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | D2012 | D2016 | D3016 | |||
| Max. size of work piece (mm) | 2000×1200 | 2000×1600 | 3000×1600 | |||
| Max. thickness of work piece | Max.100mm, can overlap process for thinner plates | |||||
| Morse taper | #4 | |||||
| Max. drilling diameter （mm） | Φ50 | |||||
| Drilling spindle | Rotating speed (rpm) | 120－560( Step-less speed adjustment) | ||||
| Max. feed stroke (mm) | 350 | |||||
| Motor power (kW) | 5.5 | |||||
| Qty. of clamps | 12 | |||||
| Clamping force (kN/each) | 7.5 | |||||
| Motor power (kW) | Servo motors | X axis | 1.3 | |||
| Y axis | 1.3 | |||||
| Z axis | 0.85 | |||||
| Pump motor | 2.2 | |||||
| Motor of scrap cleaner | 0.4 | |||||
| Motor of cooling pump | 0.43 | |||||
| Overall dimensions(L×W×H) (m) | 4.5×2.21×2.85 | 4.5×2.61×2.85 | 5.5×2.61×2.85 | |||
| Net weight (Kg) | About 5200 | About 6200 | About 7200 | |||
Applicable Industry：
This is special CNC machine for drilling plates and flanges, mainly used in steel structure, tower, bridge and other industries.
Product Feature

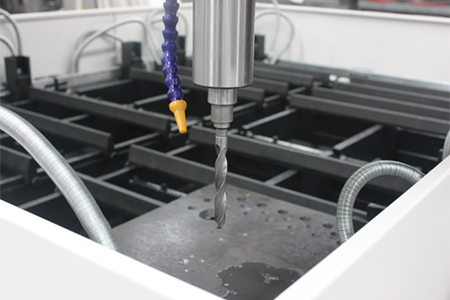

1.CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfering.
2. Machine is controlled by PLC & servo motor, ensure precision positioning .
3. The machine have 4 work area with individual reference, work-pieces can be clamped by hydraulic clamps at any area for drilling.
4. Machine equips with computer for software, it can use Auto CAD drawing directly, it also can process NC file which generated by TEKLA.
5. Scrap cleaner can collect all iron scraps and cutting liquid which is recycling.
6. The key mechanical, hydraulic and electric parts are all famous brands.
7. Optimized integration design for complete machine, no foundation requirements.
Get The Required Product Quotation As Quickly As Possible
If possible, Given detailed request helps to gain better-matched customized solution. Thanks for your patience. your request will be responsed within 1 hours, kindly pay attention to your email please.
