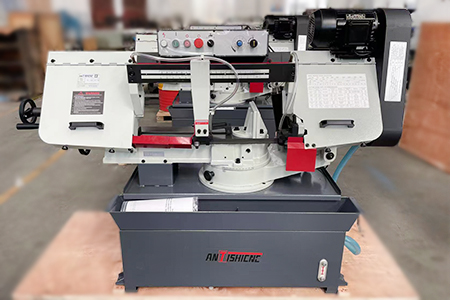

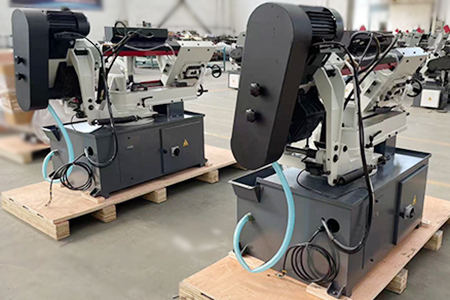

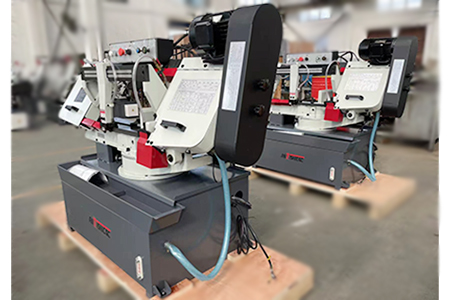

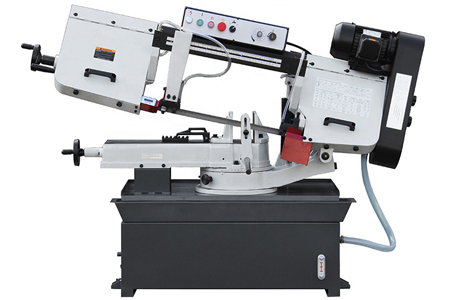

Horizontal Mitre Band Saw Machine BS-1018R
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Model | BS-1018R | |
| Machining capacity | Round steel@90° | 254mm(10″) |
| Square steel@90° | 160×406mm(6.3″×16″) | |
| Round steel@45° | 170mm(6.7”) | |
| Square steel@45° | 160×190mm(6.3″×7.5″) | |
| Saw cutting speeds | @ 60HZ | 35,60,88,115MPM
Optional:variable speed |
| @ 50HZ | 29,50,73,95MPM
Optional:variable speed |
|
| Saw blade size | 27×0.9×3215mm | |
| Motor power | 1.5W 2HP(3PH) | |
| Drive | V-belt | |
| Package size | 189×84×134cm | |
| NW/GW | 300/360kg | |
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.Cuts almost anything that you can throw at it, including many different shapes and profiles of metal.Variable cutting speeds allow you to fine-tune the saw for better cut quality.
Features:
1.The maximum processing capability of BAND SAW BS-1018 is 10″(254mm)
2.High-capacity due to controlled by motor
3.Can rotate from 0° to 45°
4.Has the advantage of quickly clamping.
5.Features a belt driven and has four cutting speed.
6.The falling speed of saw bow is controlled by hydraulic cylinder
7.With a sizing device, machine will stop automatically after sawing materials
8.With power break protection device, machine will power off automatically when the rear protective cover is opened
9.With coolant system, can prolong the service life of saw blade and improve the precision of work piece
10. Has a block feeder (with fixed sawing length)

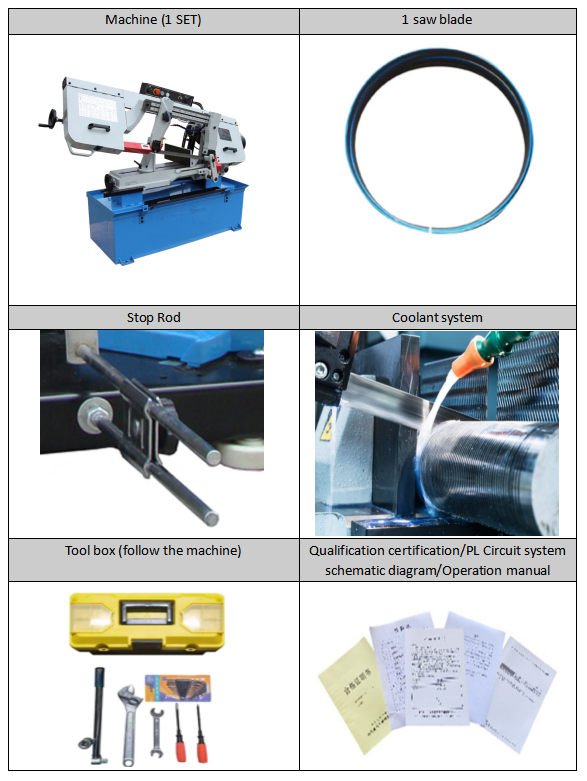

Standard Equipment
