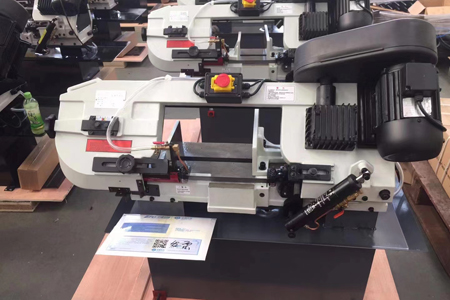

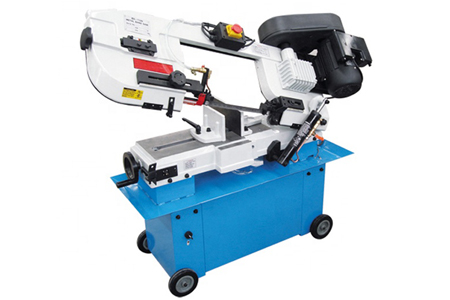

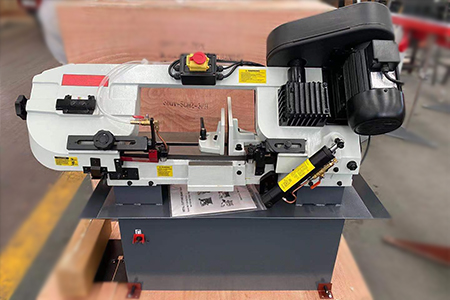

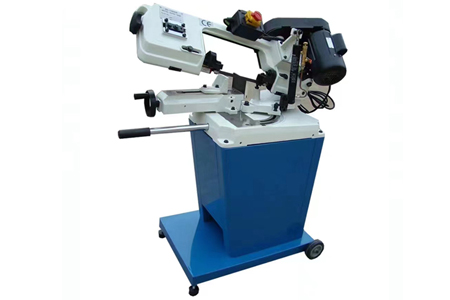

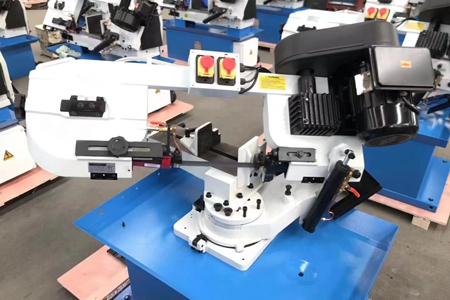

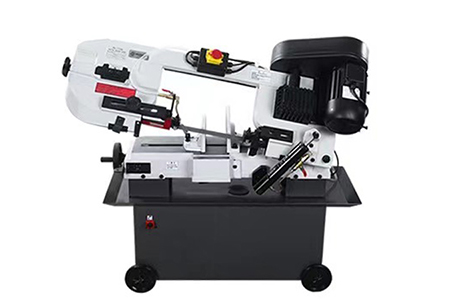

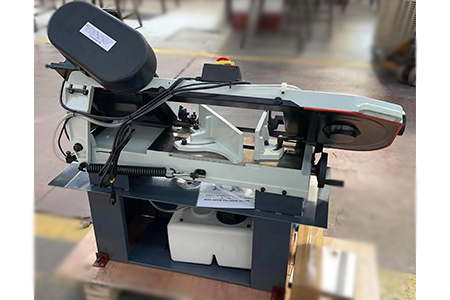

Horizontal Mitre Band Saw Machine BS-712N
Warranty : 1 Year for machinery warranty
Availability : On Stock
WhatsApp : +86-19534031668
Wechat : +86-19534031668
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Main technical parameters | BS-712N | |
Machining capacity | @90°Round steel | 178mm(7″) |
@90°Square steel | 178×305mm(7″×12″) | |
@45°Round steel | 127mm(5″) | |
@45°Square steel | 120×125mm(4.75″×4.88″) | |
Saw cutting speeds | @ 50HZ | 27,41,59,78MPM |
@ 60HZ | 22,34,49,64MPM | |
Saw blade size | 20×0.9×2362mm | |
Motor power | 750W1HP(3PH),1.1Kw1.5HP(1PH) | |
Drive | Belt | |
Package size | 125×45×115cm | |
NW/GW | 145/178kg |
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
1.Vertical cutting available
2.Standard with wheels make it easy to move to different workplace
3.Swivel vise to get angle cutting
4.Fast clamping available
The main performance characteristics:
1.7″ round bar cutting capacity at 90°
2.Belt drive, to get 4 cutting speed, 27, 41, 59, 78 MPM at 50HZ motor
3.Three phase powerful motor, 0.75KW
4.The maximum processing capacity is 7″,
5. The belt drive has fourth gear cutting speed (indicated by the letter N);
6. The belt drive has third th gear cutting speed (indicated by the letter G);
7. The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
8. With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);
9. Can the vertical horizontal dual-use ;
10. The fall speed of the saw bow is controlled by the hydraulic cylinder;
11. The machinery with base a roller, can be free to move ;
12. With stop device (After the machine sawing and cutting will automatically stop );
13. With a open the door power-off protection device (rear protection cover open when the machine will automatically power off)
14. The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece
15. Block device (fixed sawing length)

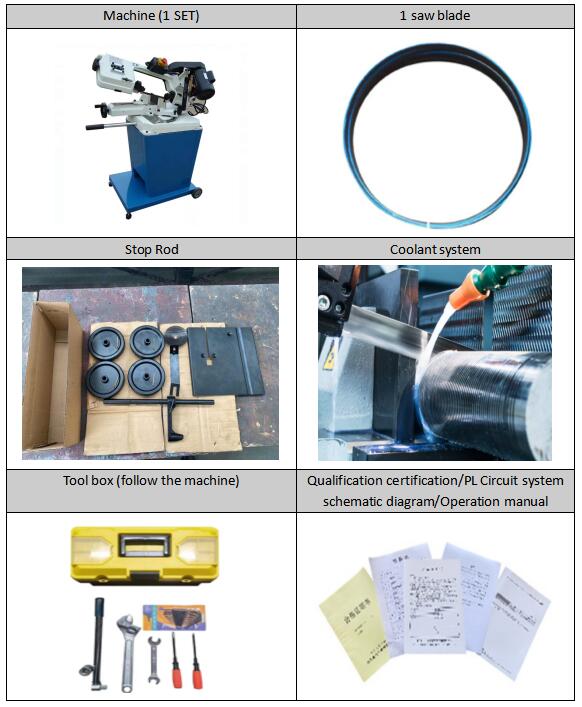

Standard Equipment
1 saw blade
Base
operator instructions
operating tools
Optional Equipment
Quick-action vise
hydraulic cylinder for saw frame
Saw Blade
Saw Band Clamping
Bi-Metallic Bandsaw Blade
Coolant Concentrate 5 Ltr.
coolant system
Infeed roller table(1/2/3 meter )
Outfeed roller table with stopper(1/2/3 meter )
Automatic band break control
Bundle vise
Hydraulic part clamping
Chip wiper
