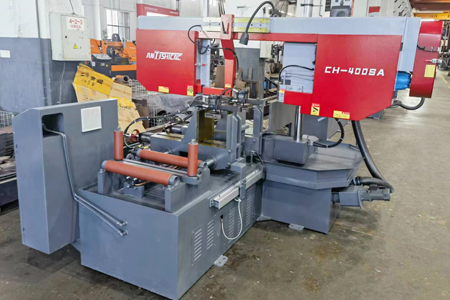

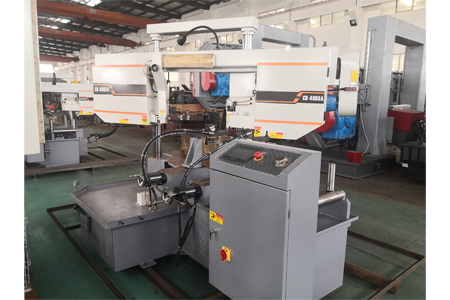

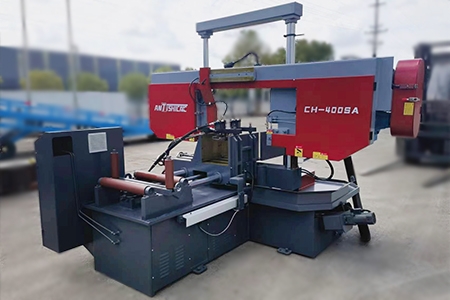

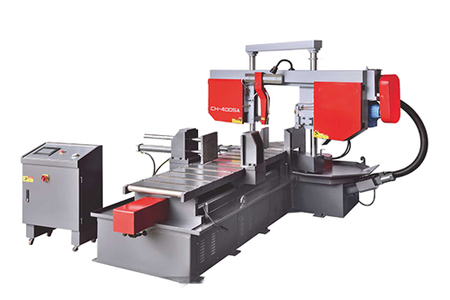

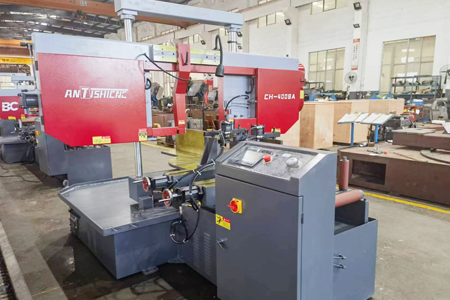

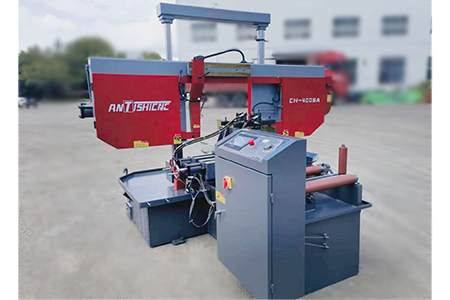

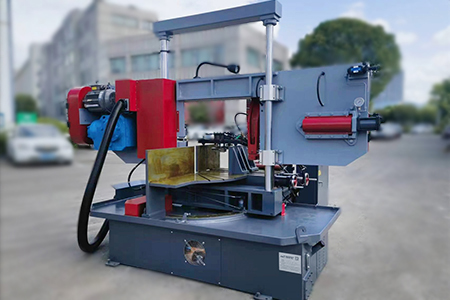

Automatic Horizontal Rotary Angel Metal Band Saw Machine CH-400SA
Rectangular @ 90° : 400*400mm
Rectangular @ 45° : 350*400mm
No installation required
Simple operation
Support video teaching
1 Year for machinery warranty
On Stock
Email : contact@antsmachine.com
(your request will be responsed within 1 hour.)
Technical Parameter :
| Technical SPECIFICATION | Model | CH-400SA | |
| 90° Circular cutting capacity | 400mm | |
| 90° Rectangular cutting capacity | 400*400mm | |
| 60° Circular cutting capacity | N/A | |
| 60° Rectangular cutting capacity | N/A | |
| 45° Circular cutting capacity | 350mm | |
| 45° Rectangular cutting size | 350*400mm | |
| Blade Speed m/min | 20~80(inverter) | |
| Blade size(mm) | 41×1.3×5590 | |
| Saw blade tension type | Hydrualic | |
| Main motor power | 4kw | |
| Feeding method | Hydrualic | |
| Angle rotate driving type | Hydrualic/Encoder | |
| Machine weight | kg | 2700kg |
| Overall dimension | mm | 2915x2180x2100 |
Product Details

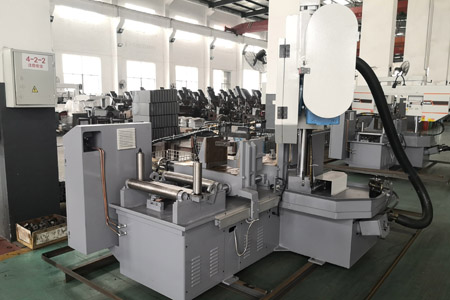

This machine adopts a double-column structure to ensure structural reliability, stability and advancement, as well as high-quality sawing accuracy, and can perform angle sawing between 0-45º.
This machine tool is mainly designed for profile sawing, especially for H-beam, channel steel and other profiles with large changes in sawing surface and easy to punch teeth. It has the characteristics of high cutting efficiency, energy saving, narrow cutting edge, energy saving and material saving, and simple operation. It is mainly used for sawing steel structural parts, steel pipes, etc.
Standard Equipment of the saw machine
Main Saw machine body
Hydraulic system
Saw frame automatic adjustment equipment
Feeding device
Angle rotation device
Cooling system
Spiral chip conveyor
Operator manual
Optional Parts and Optional Equipment
| NO. | Spare parts Description | Specification | Function |
| 1 | detachable rack | 2 meter | Take the load of materials |
| 2 | Pressure reducing valve | Clamping force regulation at Hydraulic station | Adjustable vise pressure (suitable for cutting thin-walled tubes) |
| 3 | Saw blades | 41×1.3×5590 mm | Consumable cutting parts |
