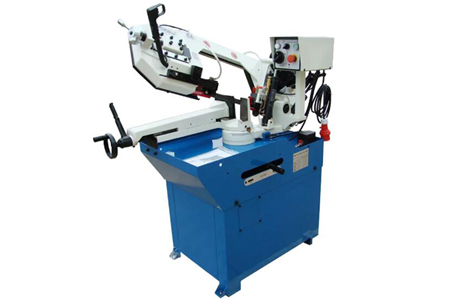

    • Horizontal Mitre Band Saw Machine BS-260G

    Warranty : 1 Year for machinery warranty

    Availability : On Stock

    WhatsApp : +86-19534031668
    Wechat : +86-19534031668
    Email : contact@antsmachine.com
    (your request will be responsed within 1 hour.)

    Technical Parameter :

    Model BS-260G
    Cut Circular @90° 227mm(9”)
    Cut Rectangular @90° 260x200mm   (10”x7.9”)
    Cut Circular @60° 90mm(3.5”)
    Cut Rectangular @60° 85x85mm   (3.5″x3.5″)
    Cut Circular @45° 150mm(6”)
    Cut Rectangular @45° 150x125mm   (6”x5”)
    Blade speed @50Hz 2P,72MPM  236FPM

    4P,36MPM 118FPM
    Blade speed @60Hz 2P,86MPM  283FPM

    4P,43MPM 141FPM
    Blade size 20X0.9X2445mm
    Motor power 0.75/1.1kw

    1/1.5HP(3PH)
    Drive Gear
    Packing   size 145x72x102 cm
    N.W./G.W. 220/275kg

    Features:
    1. 9″ round and 10″x7.9″ rectangular cutting capacity at 90°

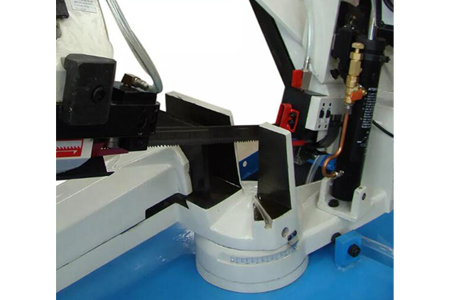

    2. Cast iron saw frame max. miter 60°
    3. Hydraulic descent

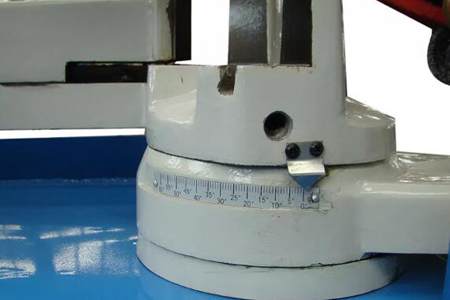

    4. Quick action lock/release lever for swivel head
    5. Coolant system as standard
    6. Control panel mounted for easy access
    7. Adjustable length stop for repetition cutting

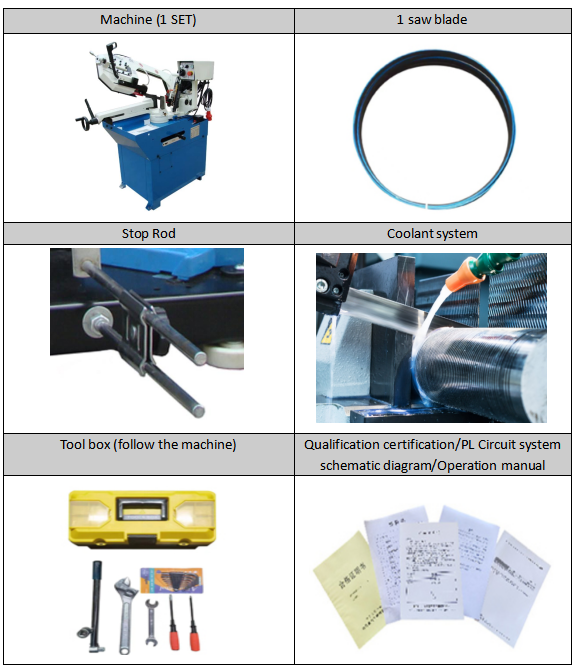

    Standard Equipment
